Fig. 5
From: Chemical origins of β-Ti stabilization via B4C additions in metastable β-Ti alloys and composites

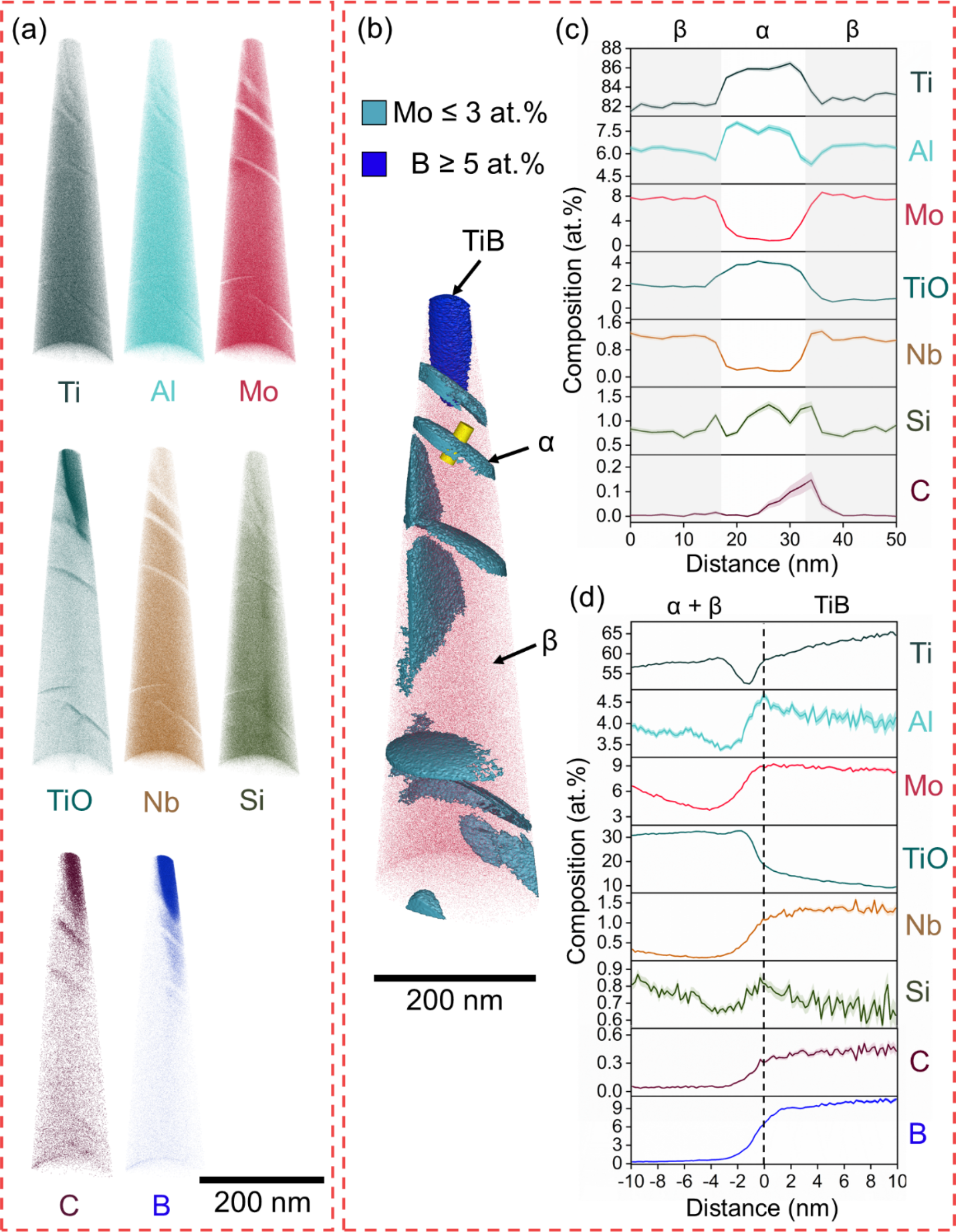

APT of B4C_3 showing α-phase, β-phase and TiB. (a) Atom maps, (b) APT reconstruction with isosurfaces highlighting α (turquoise) and TiB (blue), (c) 1D concentration plots and deviation (shaded) across the yellow cylinder, and (d) (α + β)-TiB proximity histogram. Refinement of α-phase is observed, which becomes plate-shaped particles.
