Fig. 19
From: Study on wind load characteristics of gable roof under tornado

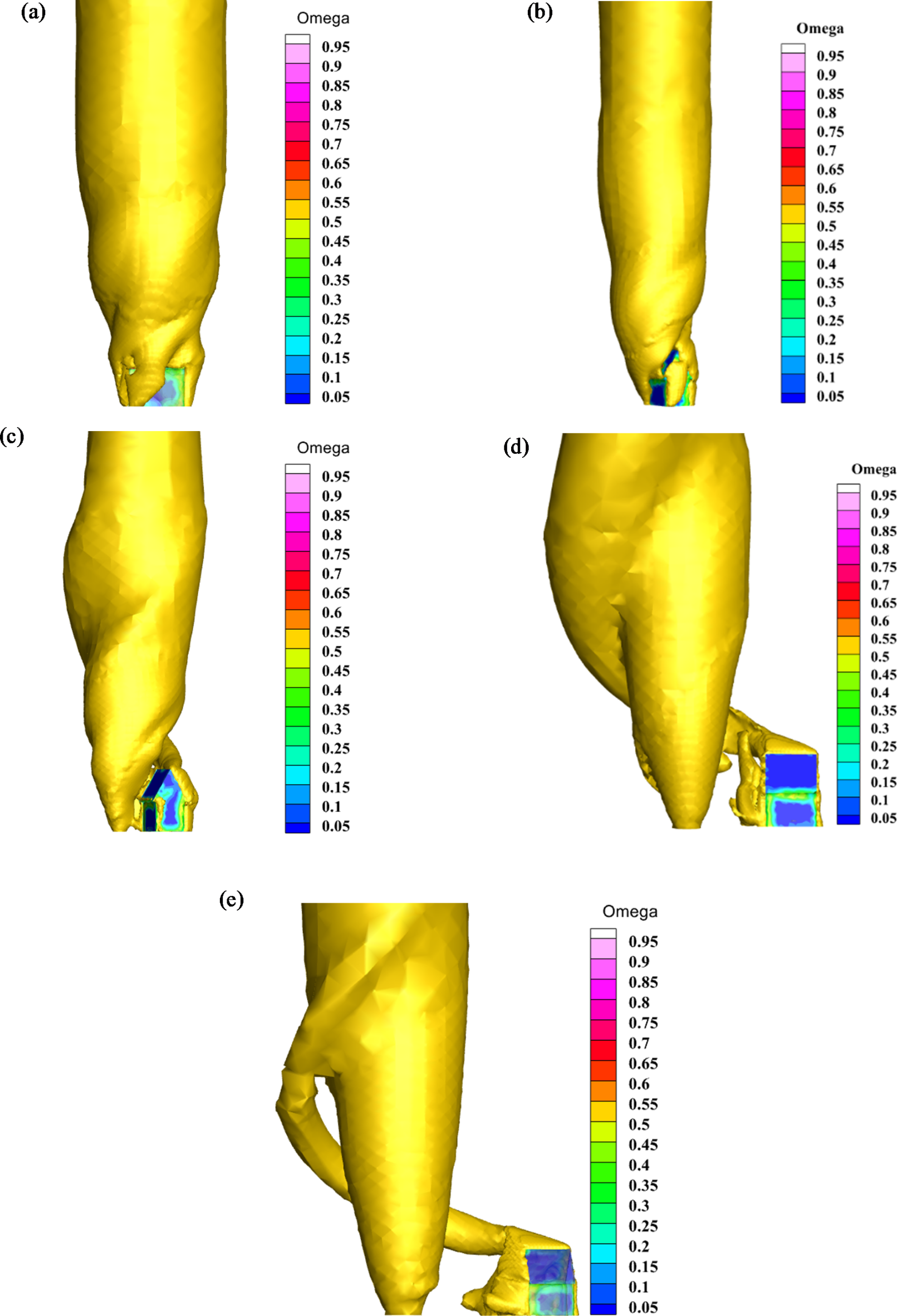

Vorticity of rough ground wind field (Ks = 2.0) (a) r = 0Rmax, (b) r = 0.5Rmax, (c) r = 1.0Rmax, (d) r = 1.5Rmax, and (e) r = 2.0Rmax
Fig. 19 | Scientific Reports
From: Study on wind load characteristics of gable roof under tornado
Vorticity of rough ground wind field (Ks = 2.0) (a) r = 0Rmax, (b) r = 0.5Rmax, (c) r = 1.0Rmax, (d) r = 1.5Rmax, and (e) r = 2.0Rmax
