From: A novel risk score model of lactate metabolism for predicting outcomes and immune signatures in acute myeloid leukemia

Fig. 5

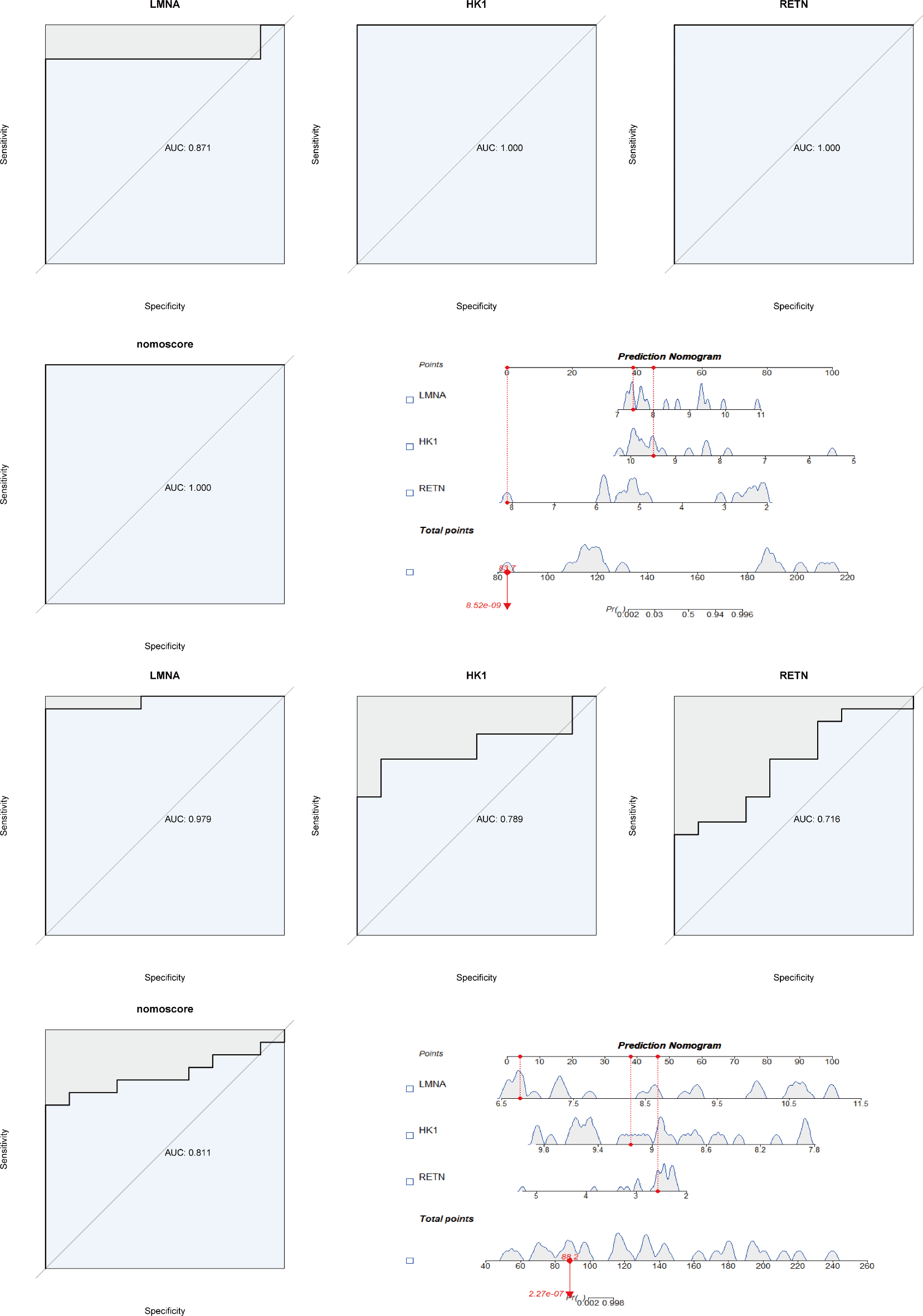

Development of lactic acid metabolism-related diagnostic models. (A) The ROC curve of LMNA in bone marrow samples in the GSE9476 dataset. (B) The ROC curve of HK1 in bone marrow samples from the GSE9476 dataset. (C) The ROC curve of RETN in bone marrow samples in the GSE9476 dataset. (D) The ROC curve of the model constructed with the three genes in bone marrow samples from the GSE9476 dataset. (E) Diagnostic line chart of bone marrow samples in the GSE9476 dataset. (F) The ROC curve of LMNA in blood samples in the GSE9476 dataset. (G) The ROC curve of HK1 in blood samples in the GSE9476 dataset. (H) The ROC curve of RETN in blood samples in the GSE9476 dataset. (I) The ROC curve of the model constructed with the three genes in blood samples in the GSE9476 dataset. (J) Diagnostic line chart of blood samples in the GSE9476 dataset.
