Fig. 1
From: Overdamping of vibration resonances by liquid crystal elastomers

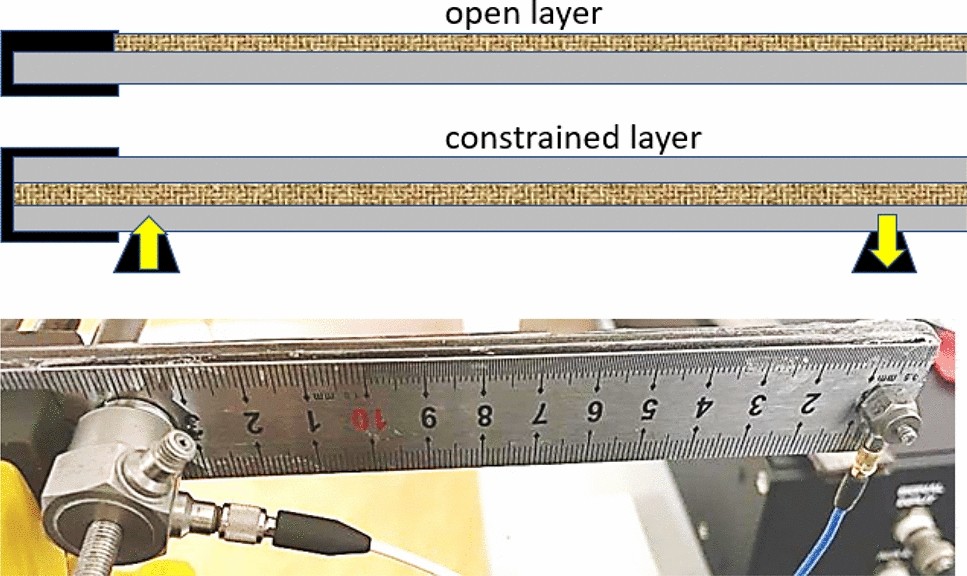

The illustrations of constrained layer geometry of vibrating plate damping, and the positioning of actuator/detector on the metal side. The use of metal ruler as plates helps maintaining the same position of actuator/detector and thus exploring the same normal modes of the construction in all tests.
