Fig. 4

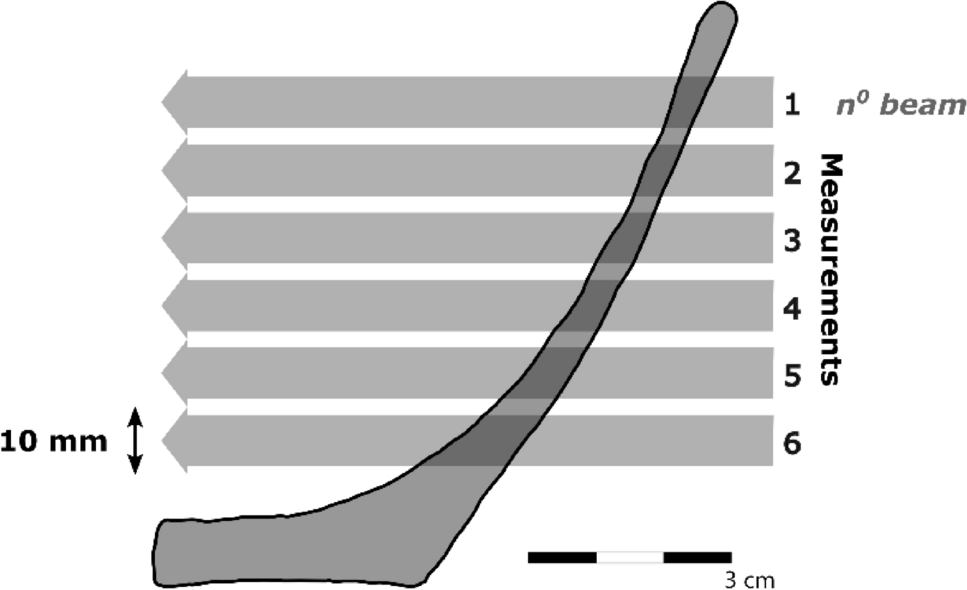

Schematic diagram of the vertical cross-section of an experimental vessel-quarter showing positions of multiple measurements along a vertical transect. The measured tilting angles were subsequently mathematically corrected to compensate for the slope of the sample relative to the beam at each measurement location.
