Fig. 4 | Scientific Reports

Fig. 4

From: Molecular mechanisms at the basis of the protective effect exerted by EPPS on neurodegeneration induced by prefibrillar amyloid oligomers

Fig. 4

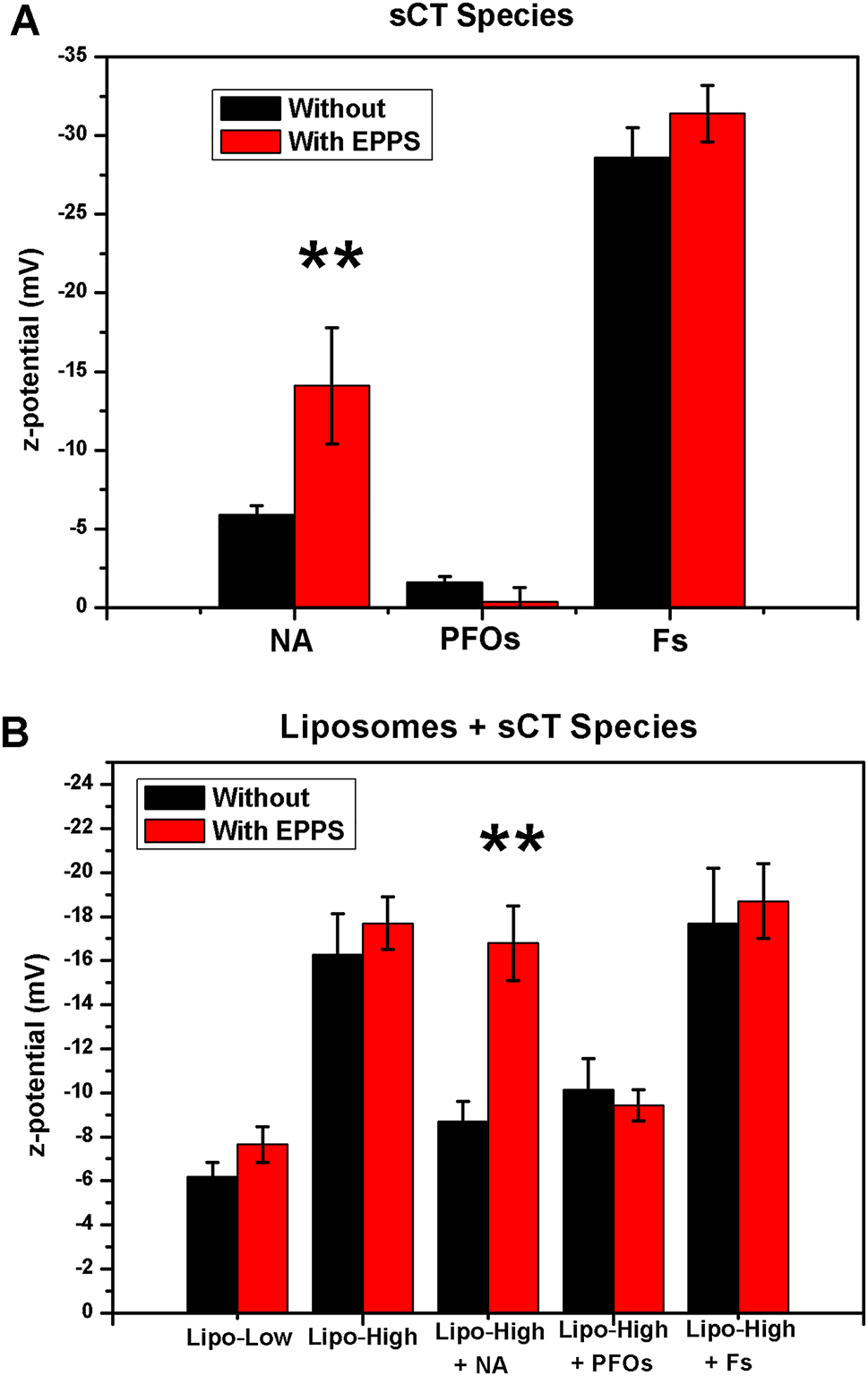

Results of Z-potential experiments on (A) sCT species, and (B) plain liposomes (high and low GM1 content) and mixture of liposomes with high GM1 content with sCT species in the absence (black) and in the presence (red) of EPPS (3mM). Each value is the mean of at least 3 independent experiments. **Indicates statistical significance.
