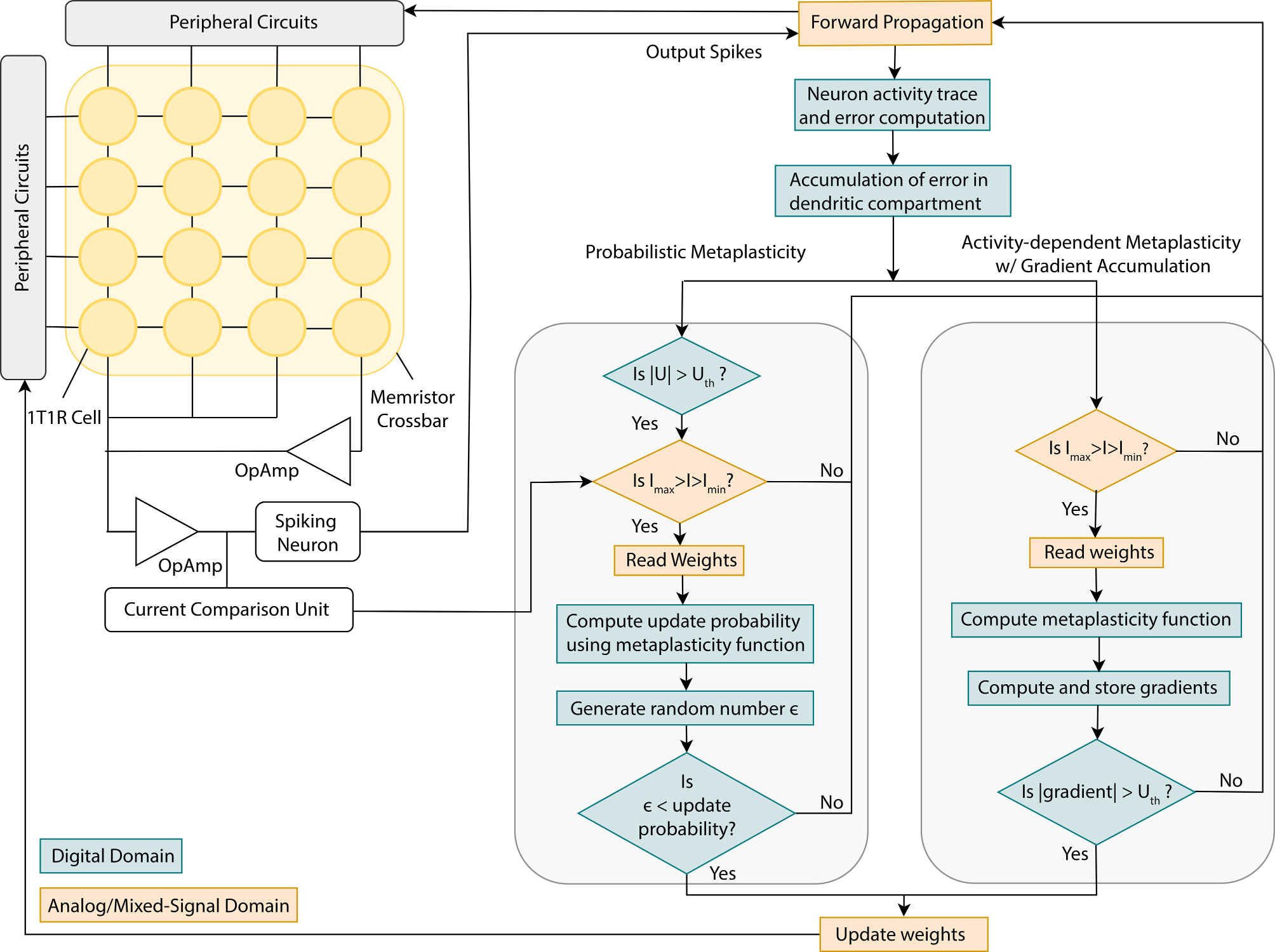

Fig. 4
From: Probabilistic metaplasticity for continual learning with memristors in spiking networks
Mixed-signal architecture and computational flow for the continual learning mechanisms. We consider a mixed-signal architecture where memristor crossbars carry out the forward pass of the spiking model and the error computation, arithmetic and logical operations are carried out in the digital domain. The figure shows the computational flow for continual learning with probabilistic metaplasticity (left) and activity-dependent metaplasticity with gradient accumulation (right).
