Fig. 10
From: Understanding complex systems through differential causal networks

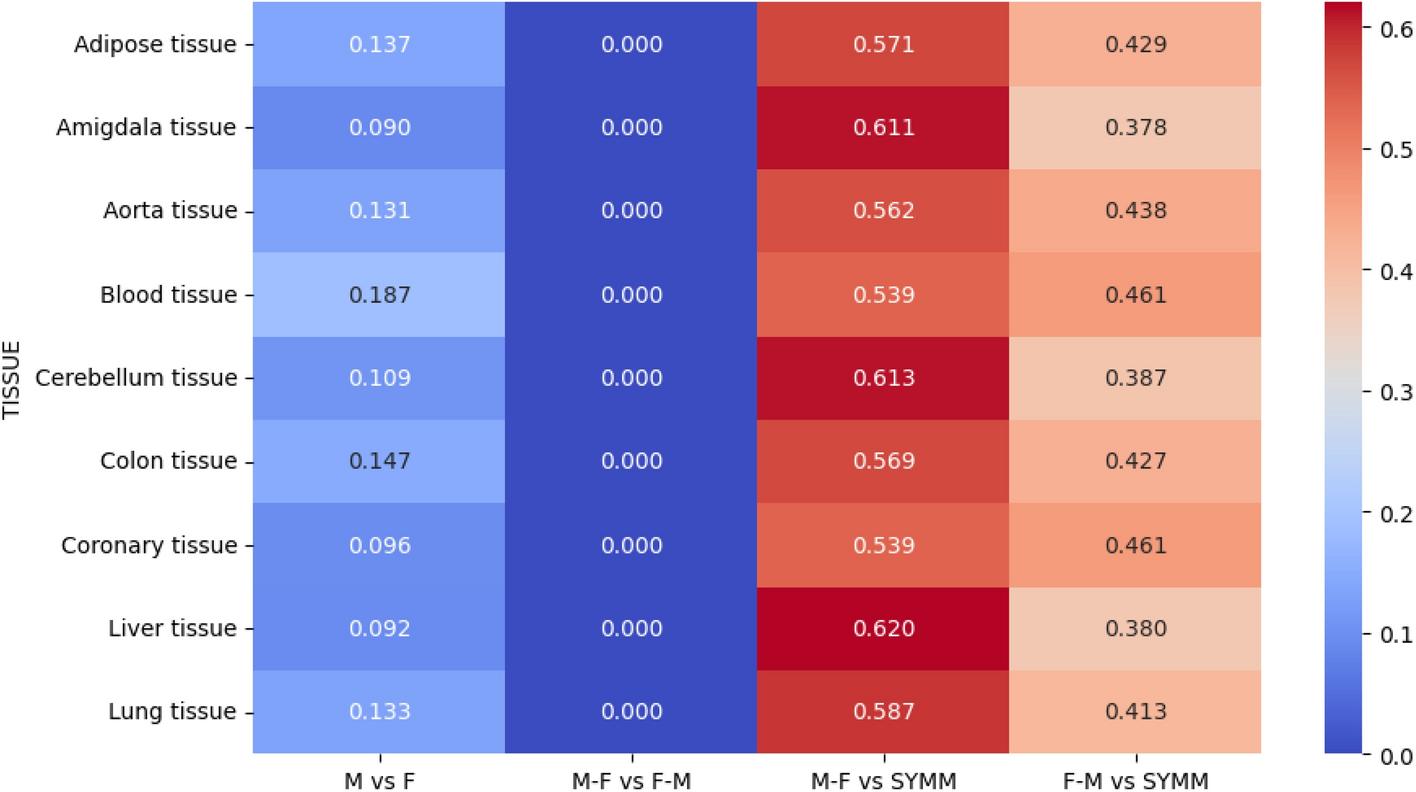

Heatmap for Jaccard index to graphically visualise and underline the obtained results. The first column is the similarity among Causal Networks of Males vs Causal Networks of Females. The second column is the Jaccard Index between the edge set of the DCN calculated as male minus female compared with the DCN of female minus male. It reveals that the calculation of a DCN is not symmetric. While the third and fourth columns are the Jaccard Index between Males minus Females with respect to the Symmetric DCN and Females minus Males with Symmetric DCN. Networks calculated as Males minus Females have a greater similarity due to the higher number of edges.
