Fig. 3
From: Defect engineering in organic semiconductor based metal-dielectric photonic crystals

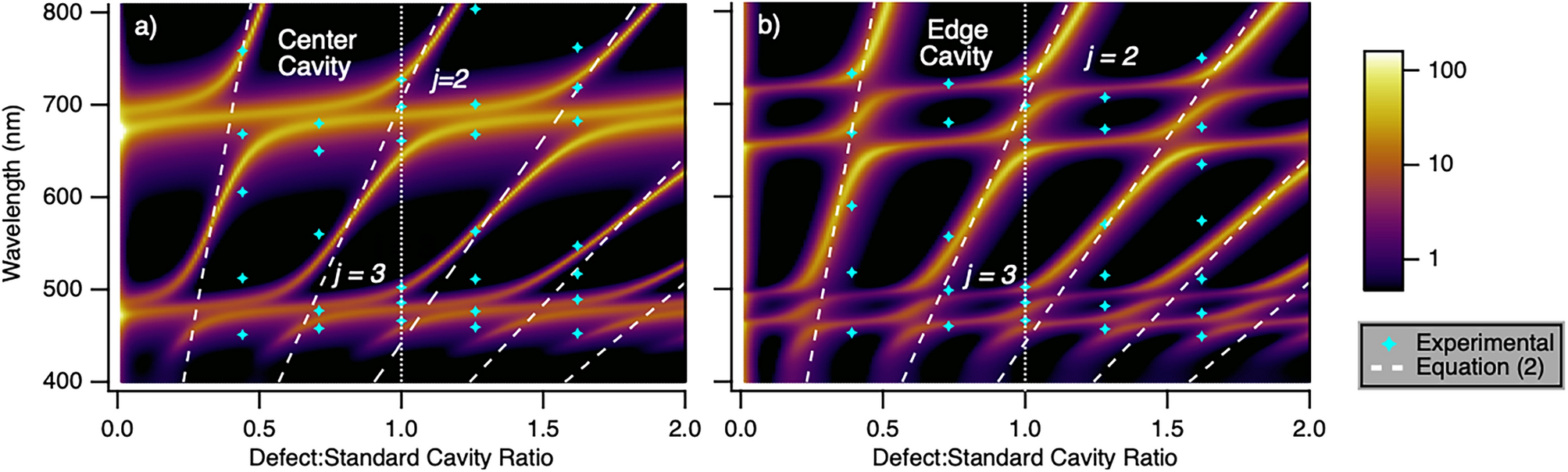

Computationally simulated (color map) and experimentally resolved transmission spectra for \(N=3\) MDPCs as a function of defect cavity size with \(0.02\le r \le 2\) for defect located in (a) the center cavity and (b) an edge cavity. The vertical white dotted line indicates \(r=1\) (no defect). White dashed lines plot the theoretical transmission peaks described by Eq. (2), for a single, isolated cavity whose size matches the defect cavity.
