Fig. 8

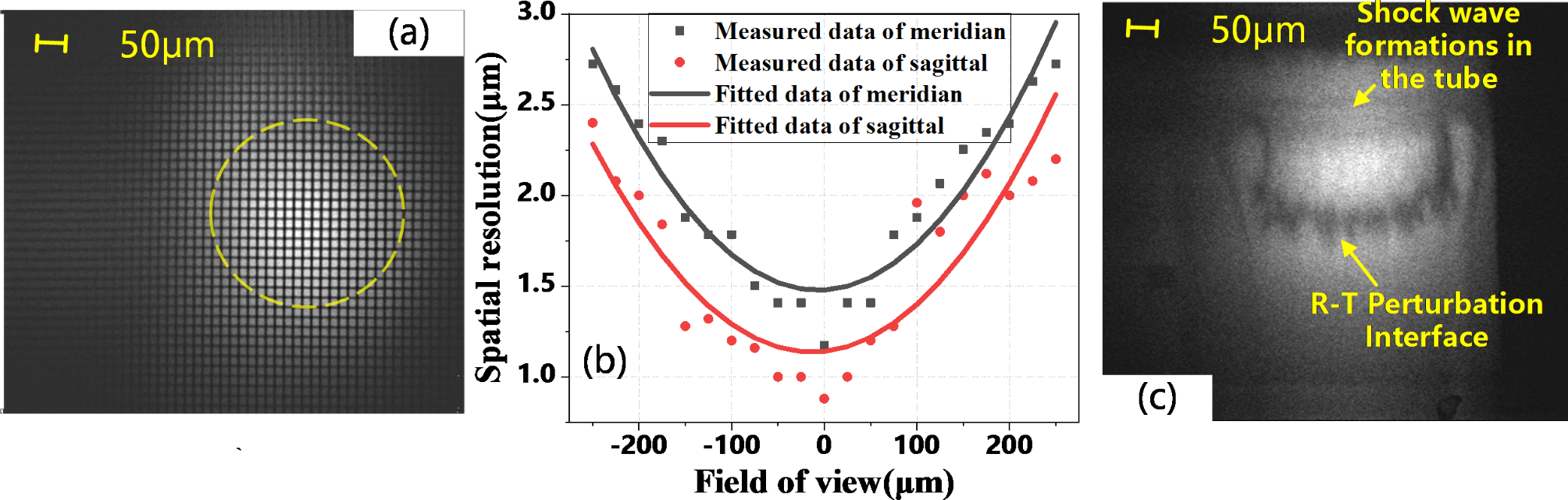

Imaging results of the laser facility with the AKB microscope. (a) 1000-mesh grid imaging of the central FOV, (b) spatial resolution using the 10–90% criterion, and (c) imaging results for an R–T sinusoidal perturbation target with V backlight.
