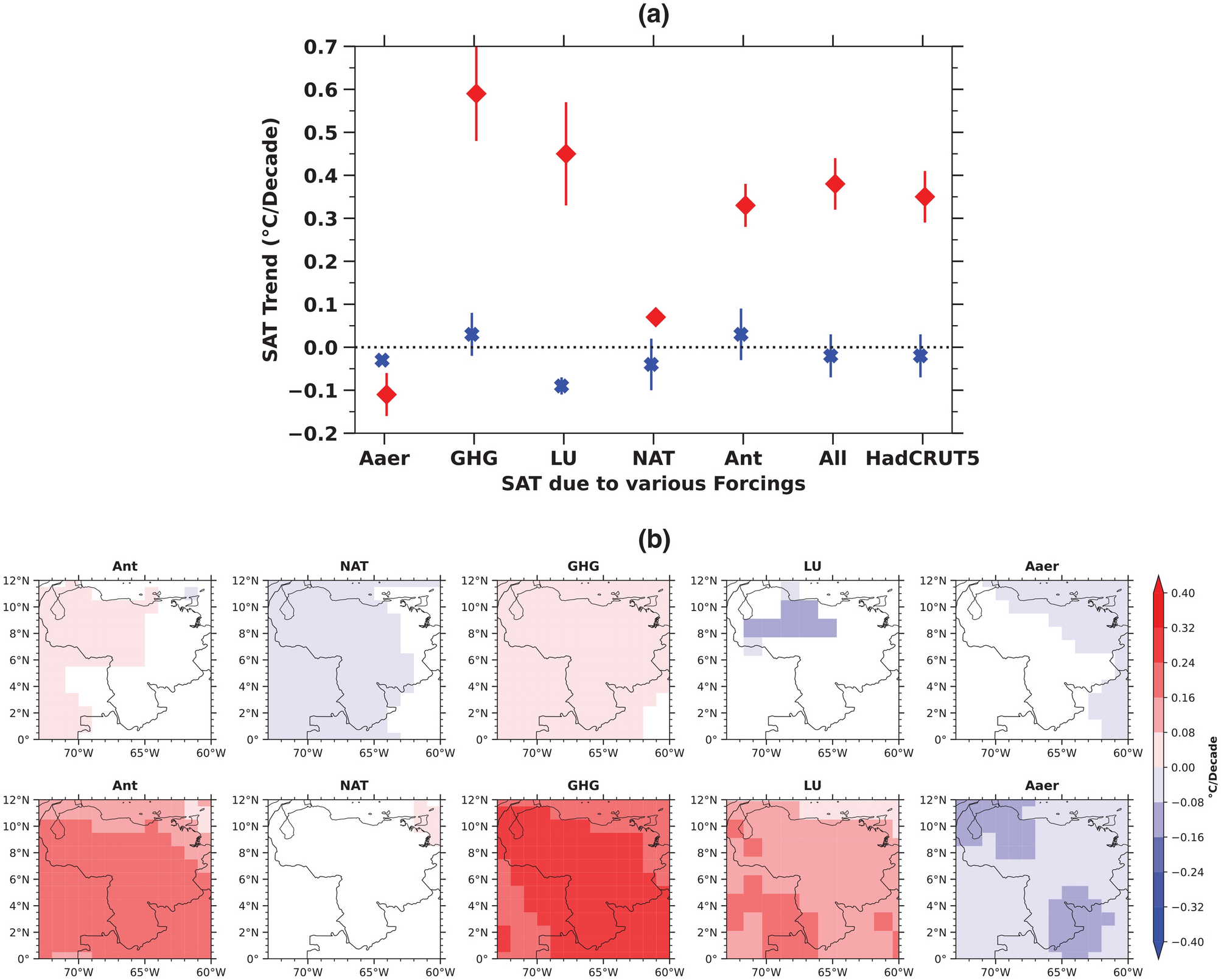

Figure 2
From: Tracing human influence on rising surface air temperature in Venezuela
Pre-industrial (from 1850 to 1900) and Industrial period (from 1955 to 2005) SAT trends over Venezuela. (a) The average trends of various forcings are presented as the pre-industrial period, and industrial period as blue and red respectively. (b) The SAT trends presented spatially for various forcings over Venezuela is presented as, (top row) for the pre-industrial period, (bottom row) for the industrial period. Insignificant trends are masked out.
