Fig. 2
From: Rayleigh wave attenuation and phase velocity maps of the greater Alpine region from ambient noise

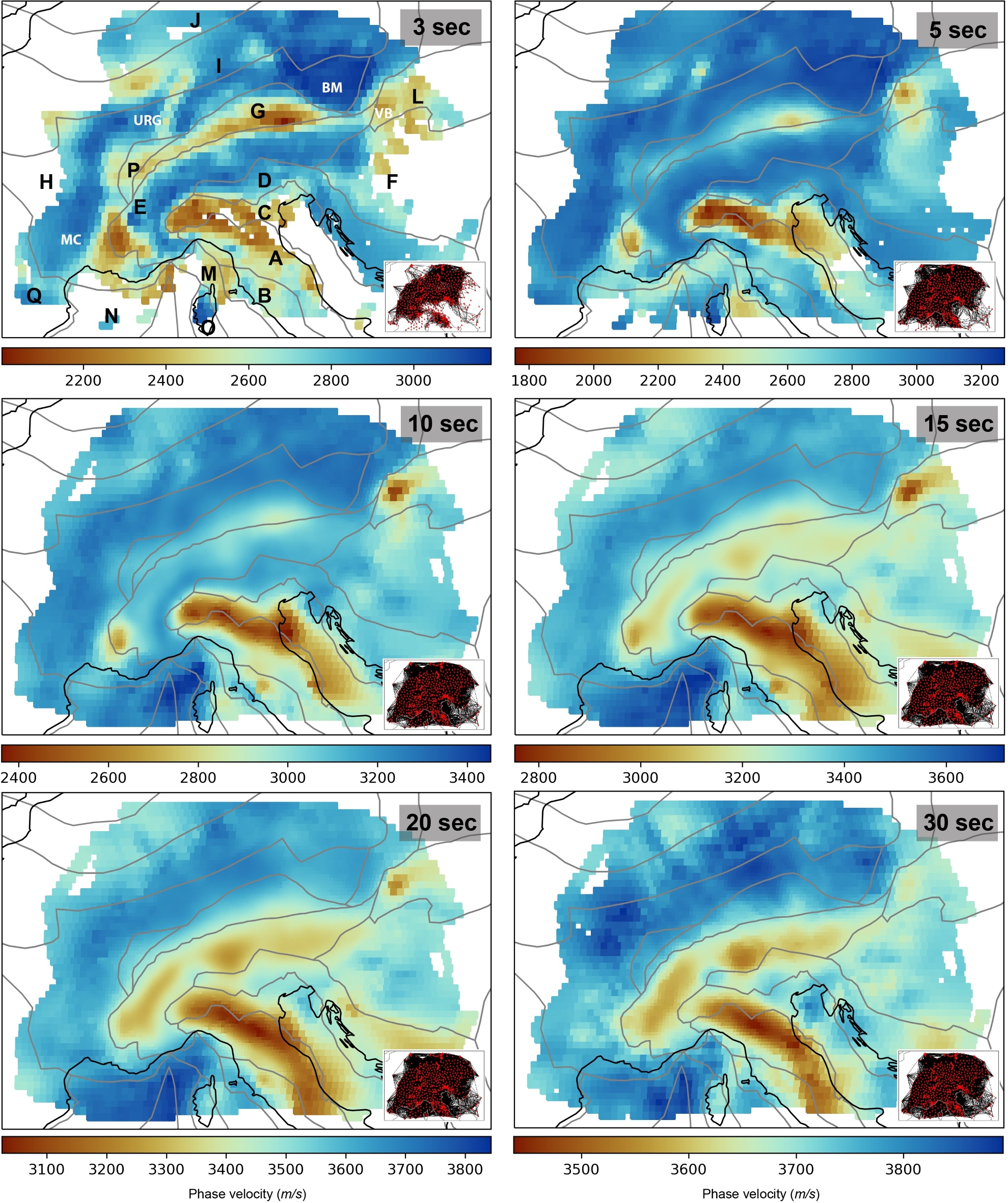

Rayleigh wave phase velocity maps at 3, 5, 10, 15, 20, and 30 s. For the geotectonic provinces refer to Fig. 1. Lower right panels show raypath maps at each period. Red triangles represent the broadband seismic stations.
