Fig. 1

From: Automated in-situ monitoring of accelerated crystallization processes of nifedipine using terahertz time-domain spectroscopy

Fig. 1

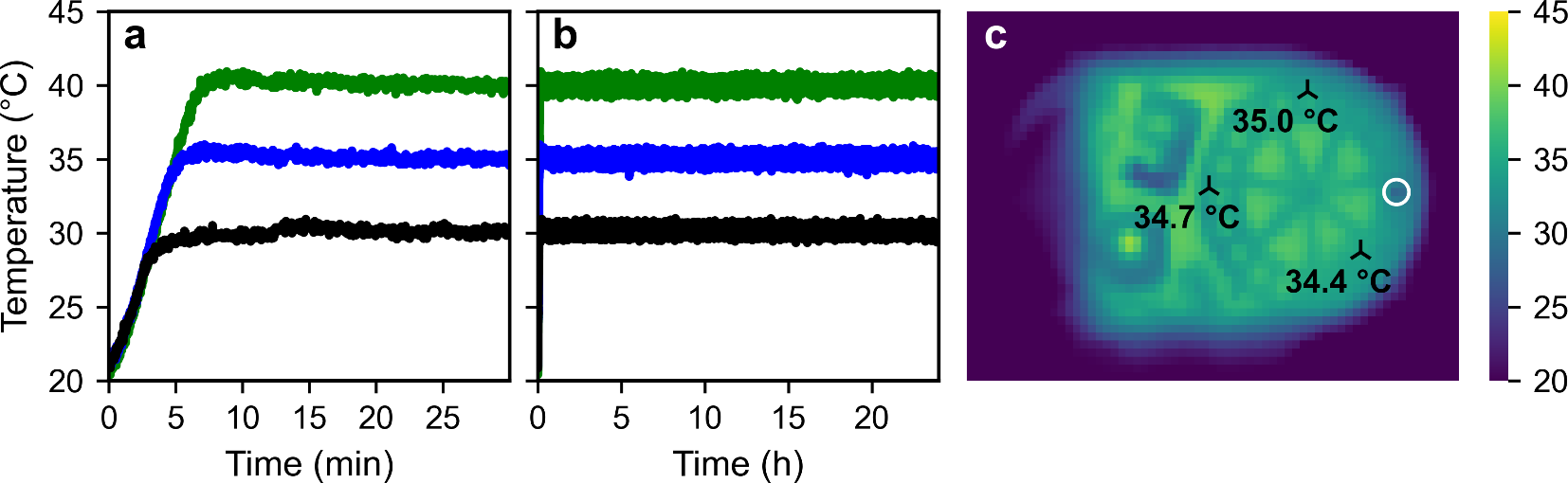

(a) Heat-up phase and (b) temperature-stabilization inside the T-Box over 24 h for three target temperatures (black 30 °C, blue: 35 °C and green: 40 °C; each averaged over the two installed temperature sensors). (c) Thermal image of the sample chamber immediately after opening the T-Box with a target temperature of 35 °C and annotated temperatures of specific parts (black triangles). The white circle indicates the measurement aperture where the samples during measurements are located.
