From: Dynamic [99mTc]Tc-mebrofenin SPECT/CT in preoperative planning of liver resection: a prospective study

Fig. 1

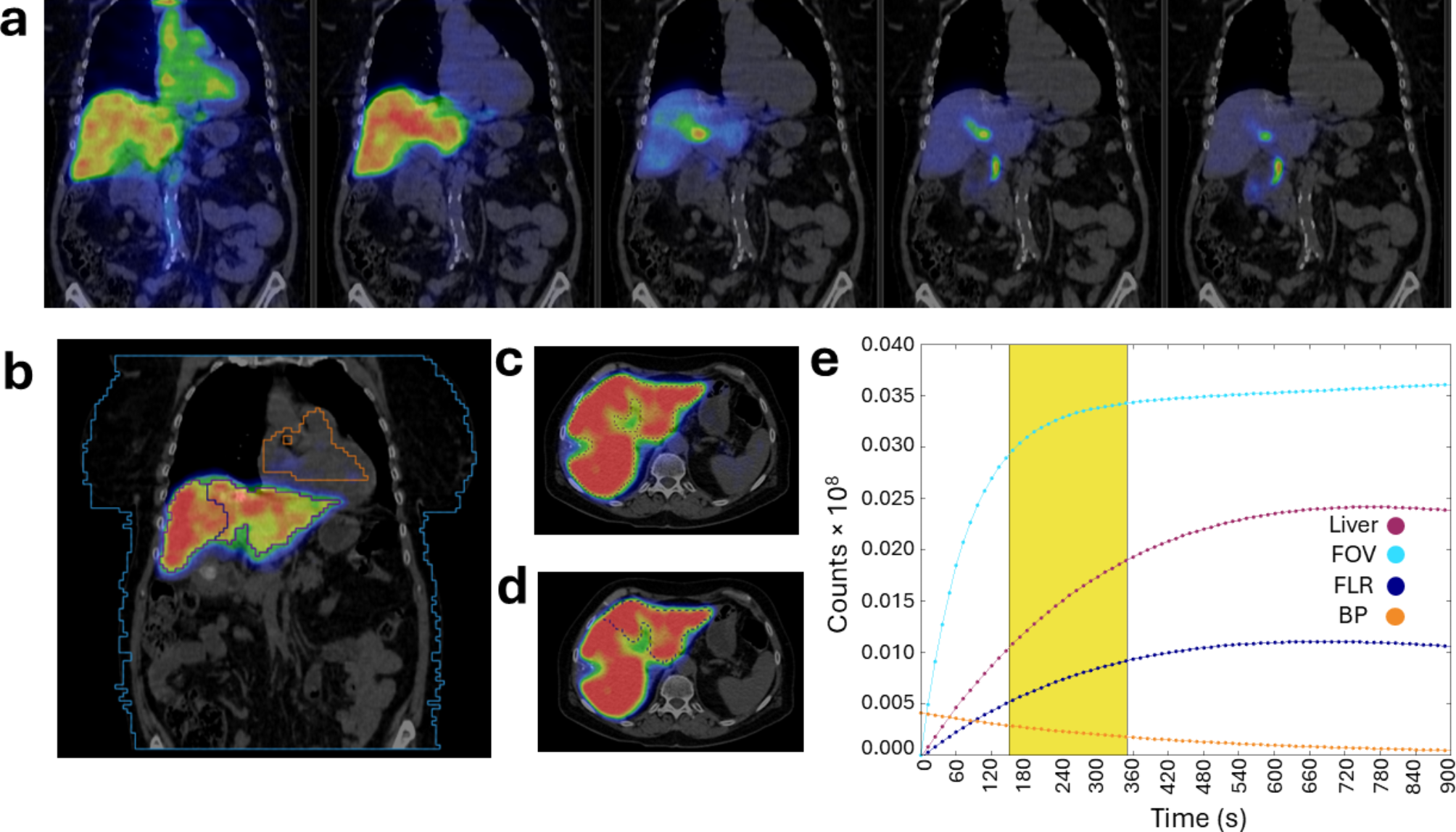

Dynamic [99mTc]Tc-mebrofenin SPECT/CT results.

a: Coronal slices of the total field of view. First 5 SPECT scans.

b: Coronal slice of the total field of view with the VOI regions in the parenchymal phase.

c: Representative transverse SPECT/CT image of a liver with a liver VOI in the parenchymal phase.

d: Representative transverse SPECT/CT image of a liver with the FLR VOI in the parenchymal phase.

e: Time‒activity curves according to the VOI regions. The time intervals marked in yellow are used to determine filtration.
