From: Defining depth requirements to conserve fish assemblages from water take in an intermittent river

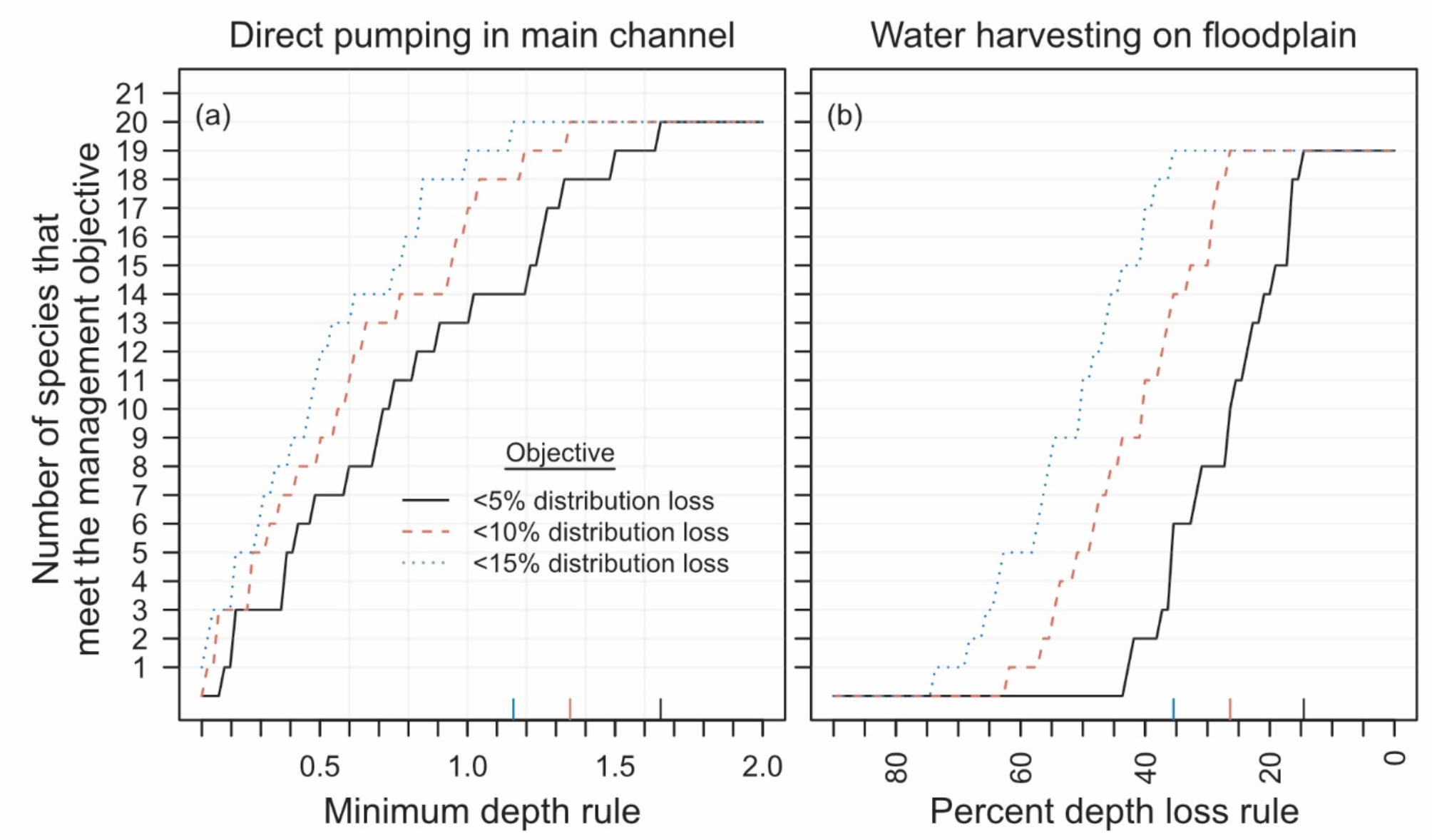

The number of fish species that meet the management objective of < 5%, < 10% and < 15% loss in distribution (i.e., the number of pools occupied) for (a) different minimum depth rules for pumping water directly from main channel pools, and (b) different percent reductions in the depth of floodplain pools associated with floodplain water harvesting. The solid colored lines that bisect the x-axis indicate the location where the three management objectives start to decline. Note, that the total number of species differs slightly between the two habitats.
