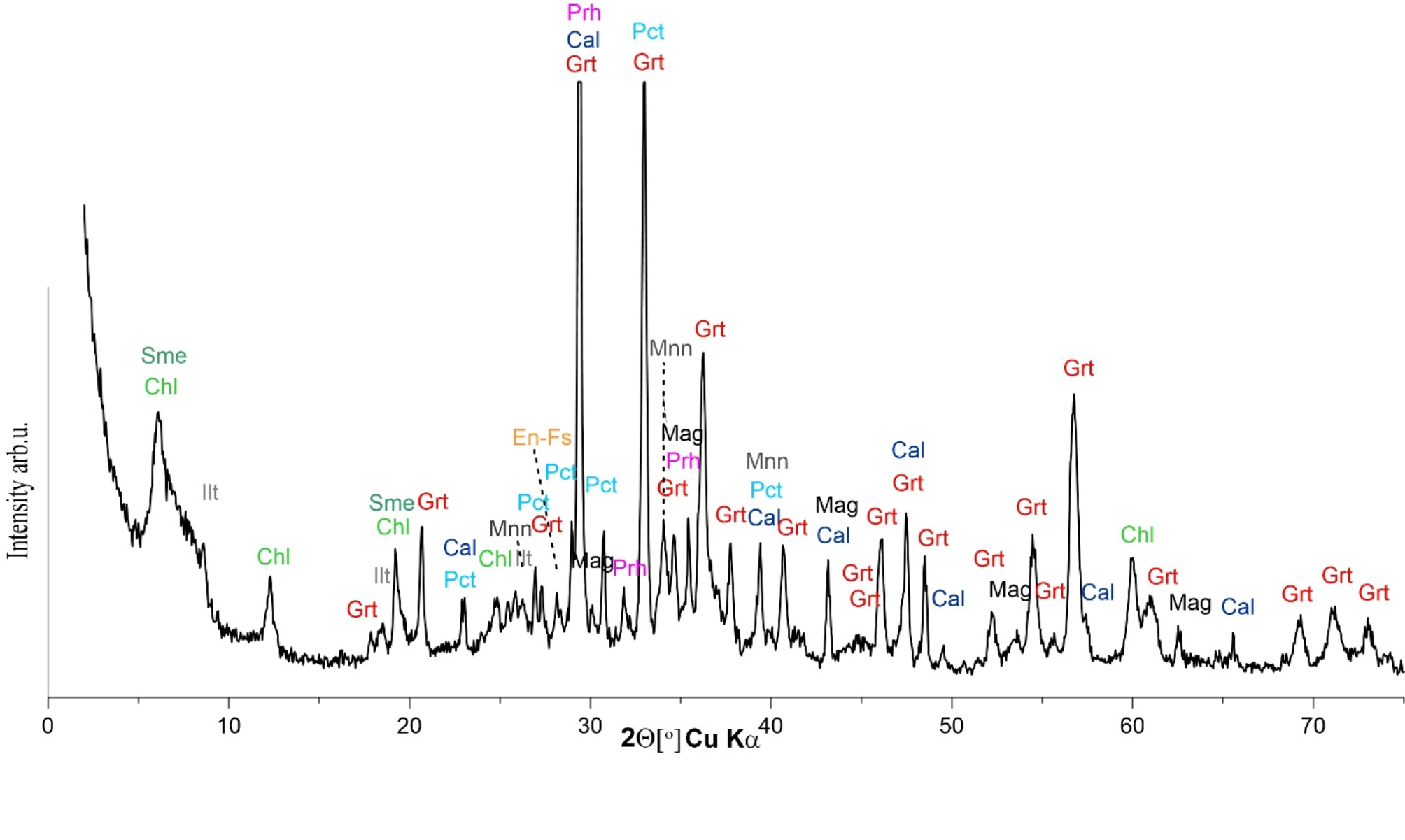

XRD pattern of garnet rich fraction selected from pyroclastic material from the Las Filipinas larimar mine. Grt – Garnet (47-1877, 33–285), Cal – Calcite (05-0586), Pct – Pectolite (74-1109), Chl – Chlorite (16–0362), Sme – Smectite, Ilt – Illite, Mnn – Manganite (41-1379), Mag – Magnetite (19–0629), Prh – Prehnite (29–0290), En-Fs – Enstatite (19–768)- ferrosilite (29–721). In brackets, the ICDD database entry numbers are given.
