Fig. 7
From: Modelling mixed crop-livestock systems and climate impact assessment in sub-Saharan Africa

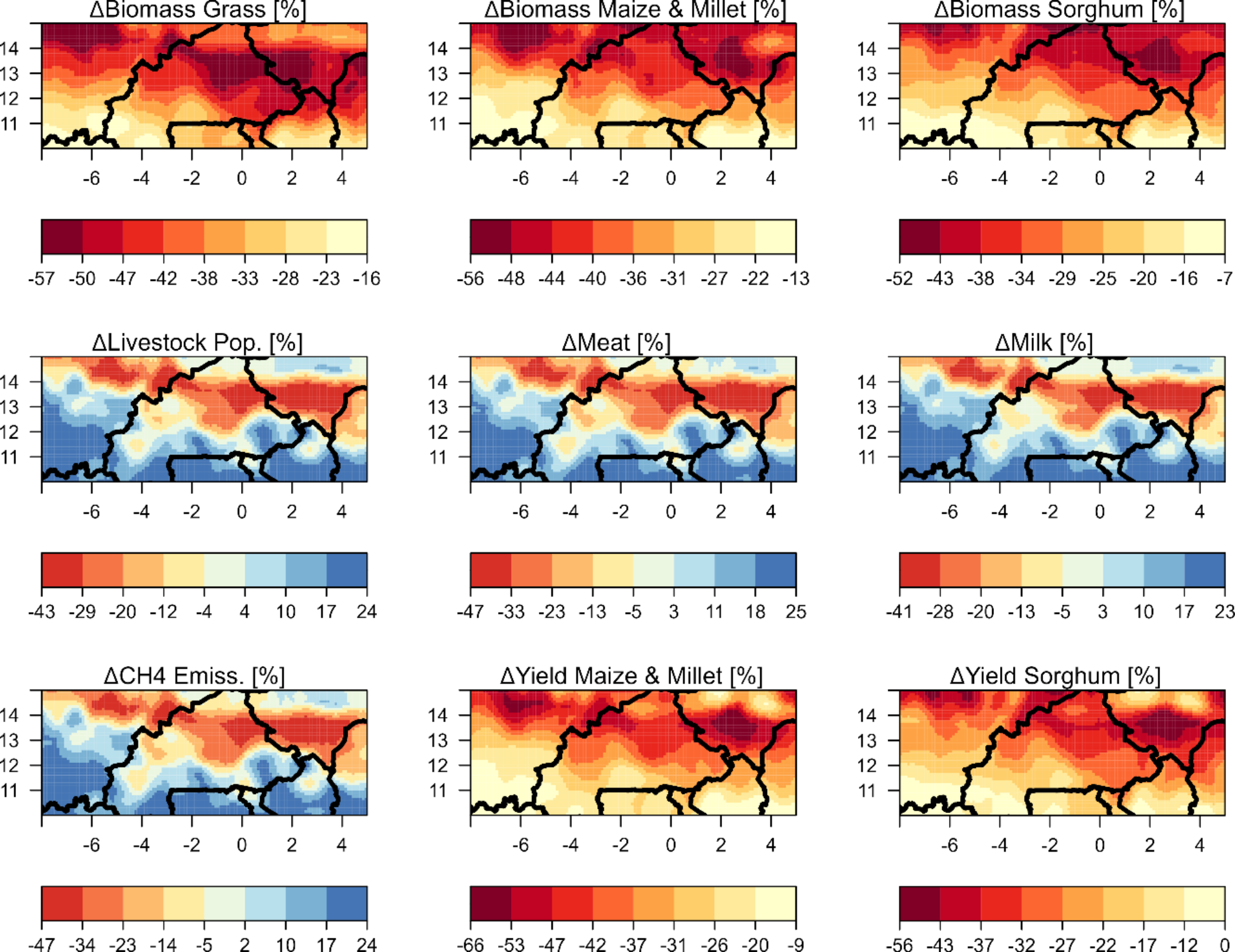

Mean differences (%) between historical (1981–2005) and future (2020–2050) simulations considering an ensemble of three GCMs for aboveground biomass produced by the grassland, maize and millet, and sorghum (top-row panels); livestock population, meat, and milk (center-row panels); and methane emissions (ΔCH4) from the integrated livestock system, and yield produced by maize and millet, sorghum (bottom-row panels). The solid black lines on the maps represent the territorial borders.
