Fig. 8
From: Modelling mixed crop-livestock systems and climate impact assessment in sub-Saharan Africa

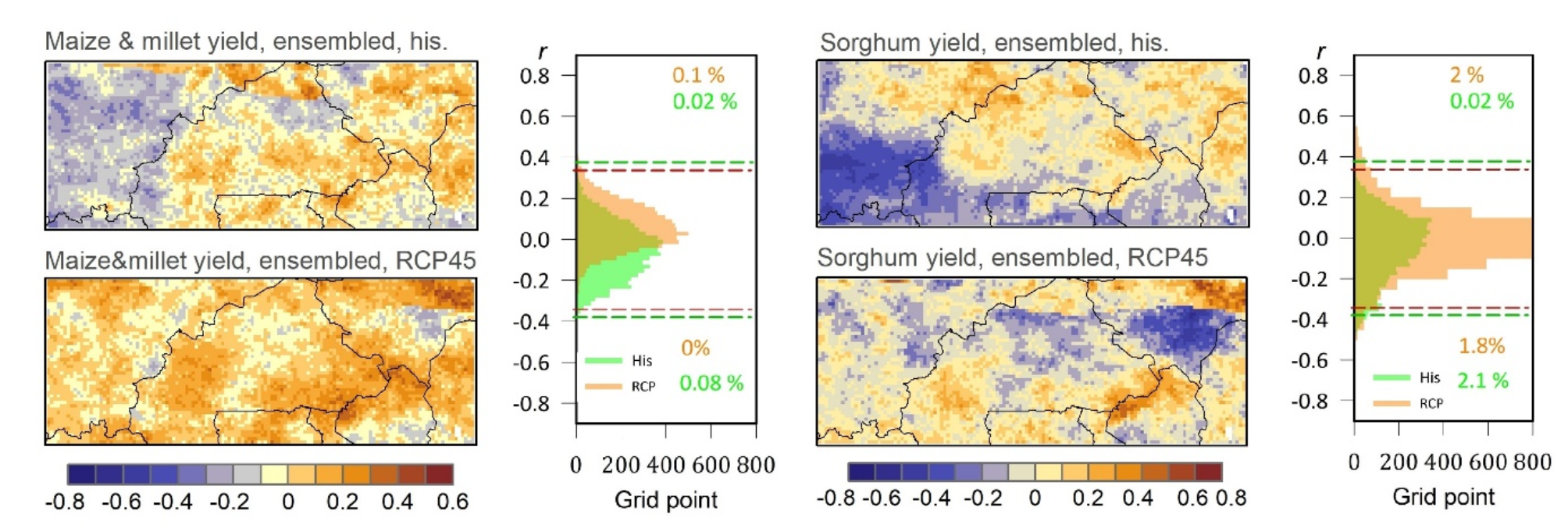

Spatial correlation between the crop yields and the annual sWSI for both ensembled historical climate conditions (“His”) and the ensembled future conditions (RCP4.5). In the histograms of the frequency distribution of correlation coefficients for historic (red) and future (green) conditions, the red and green dashed lines represent the critical values of correlation at a significant level of p < 0.05 for the “His” and RCP4.5 datasets, respectively.
