From: A comprehensive guide to selecting suitable wavelet decomposition level and functions in discrete wavelet transform for fault detection in distribution networks

Fig. 5Fig. 5

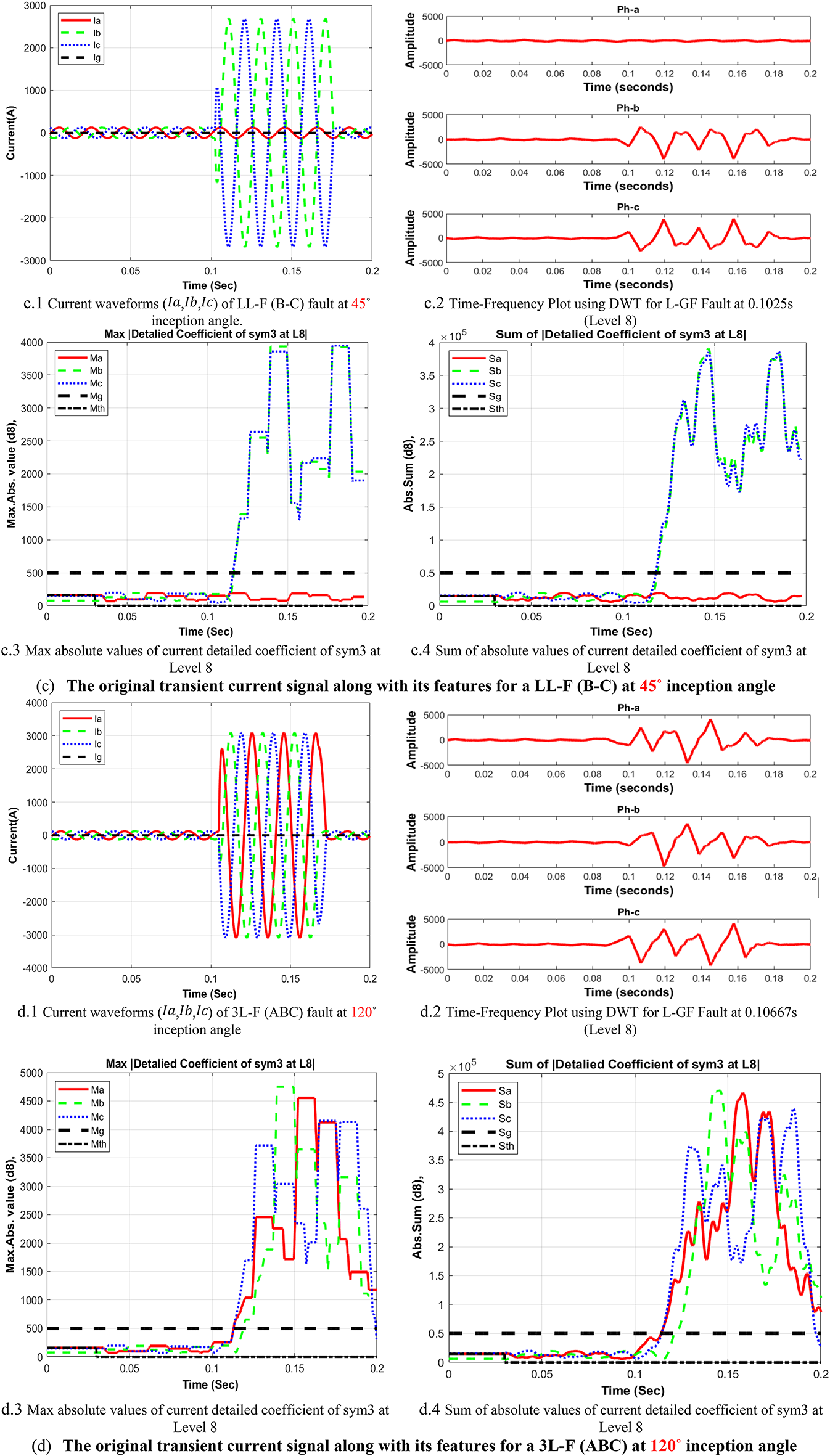

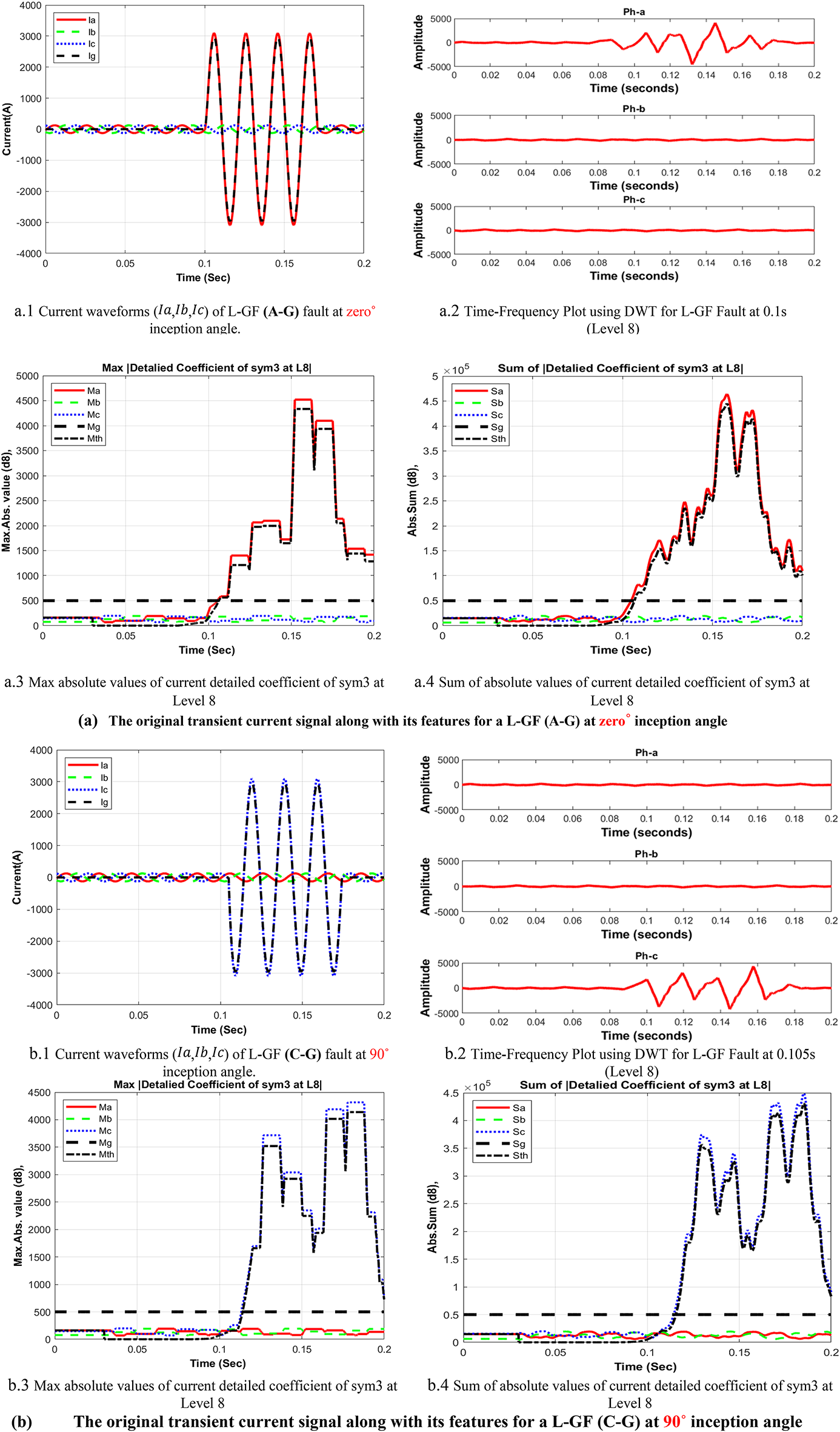

Measured current waveforms, Time-Frequency Plot using DWT, calculated Max absolute values of current detailed coefficient of sym3 at level 8 (Ma, Mb, Mc, Mg) and sum of absolute values of current detailed coefficient of sym3 at level 8 (Sa, Sb, Sc, and Sg) for different fault types, and different inception angles.
