Fig. 3

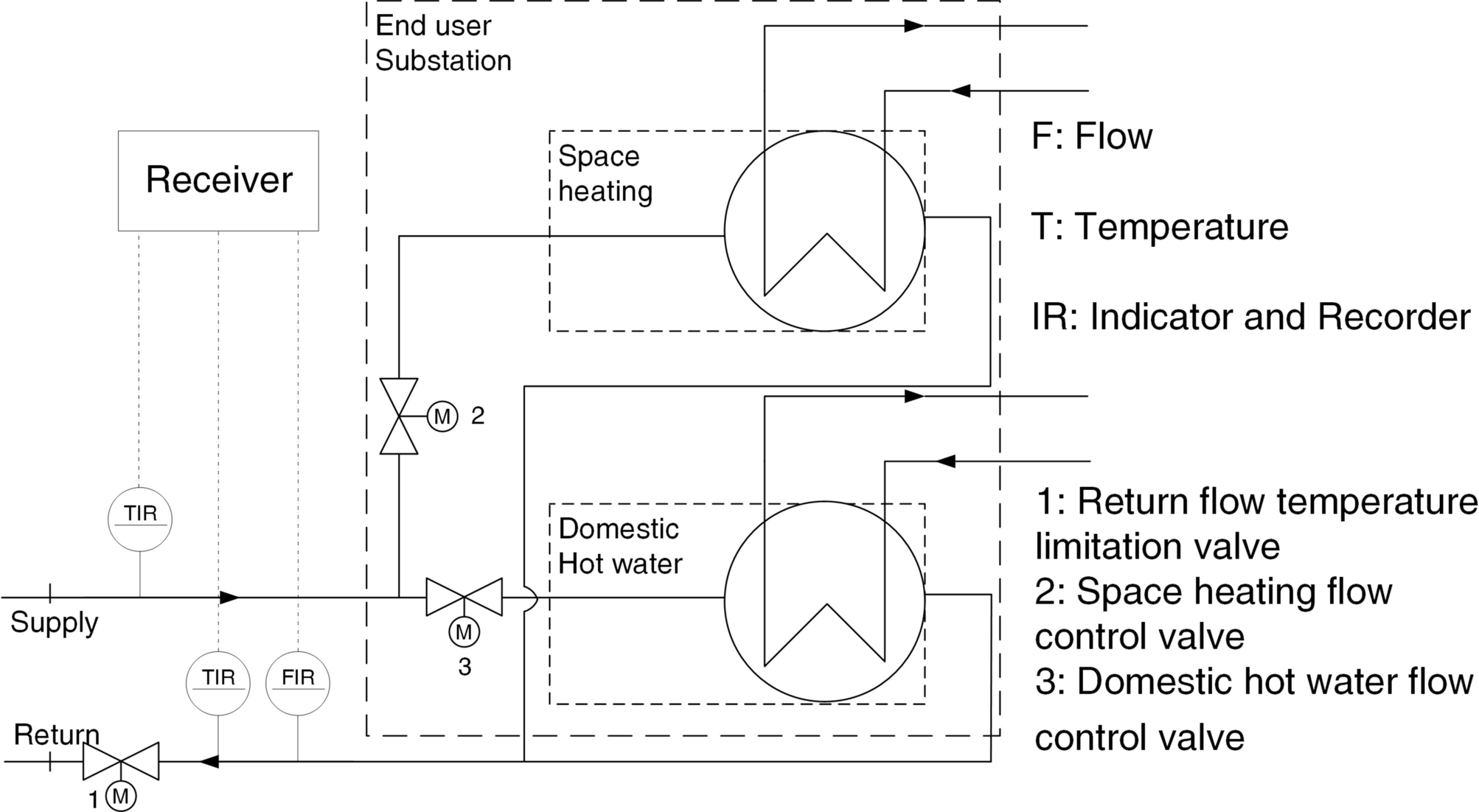

Exemplary measurement architecture of a substation on the user level in the model region in flow diagram. The heat supply can cover both domestic hot water and space heating or the latter only and is measured as the combined demand on the primary side of the heat exchanger with two Temperature Indicators and Recorders (TIR) and a device for the volume flow measurement (FIR).
