Fig. 8

From: Clustering- and statistic-based approach for detection and impact evaluation of faults in end-user substations of thermal energy systems

Fig. 8

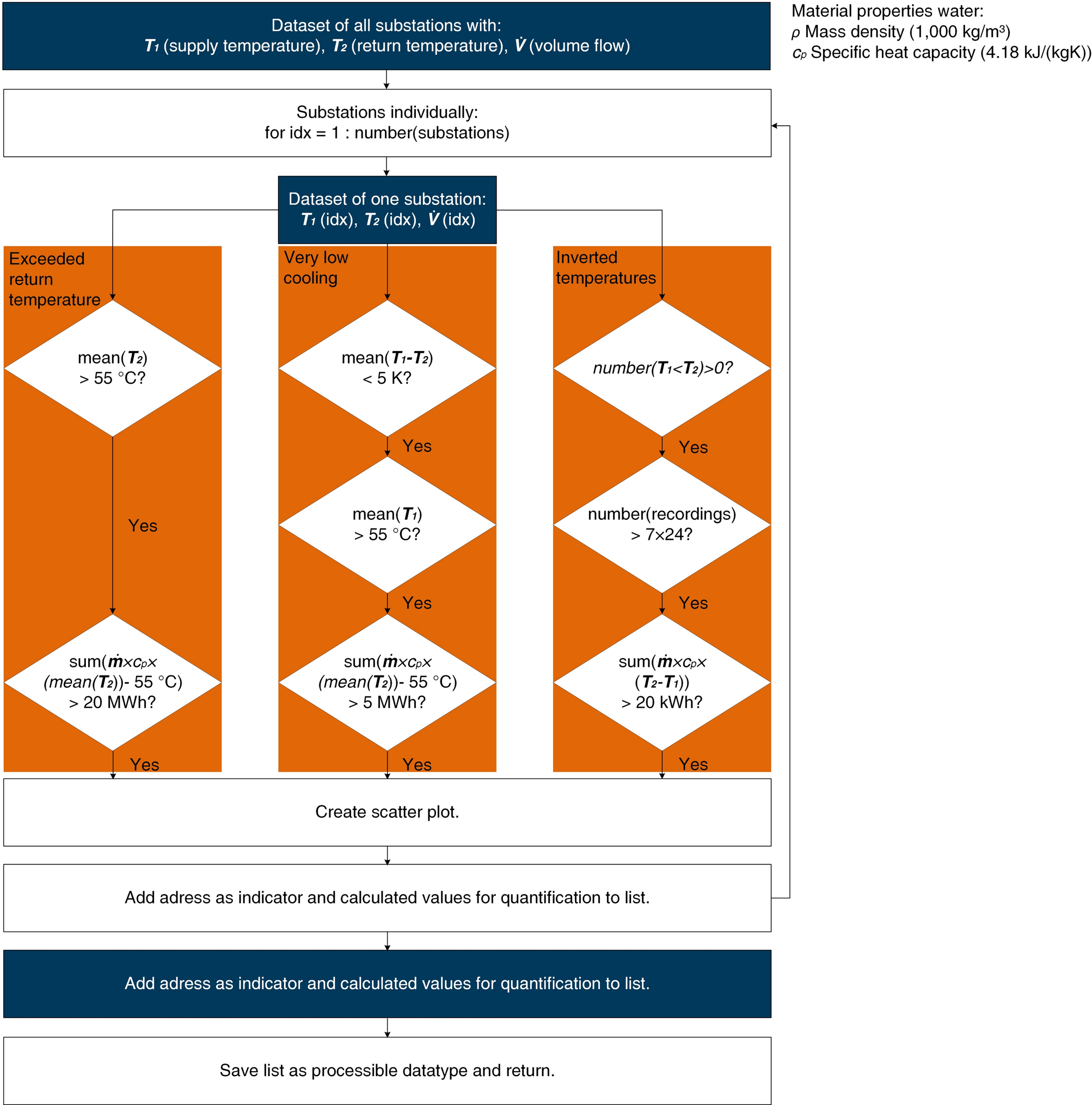

Algorithmic workflow of statistical approach for the identification and impact evaluation of faults on the user level. The data are processed individually for each substation in three paths to evaluate whether a fault exists and determine the degree of influence on the system with the named restrictions, after which the results are visualized and saved in a user-friendly manner.
