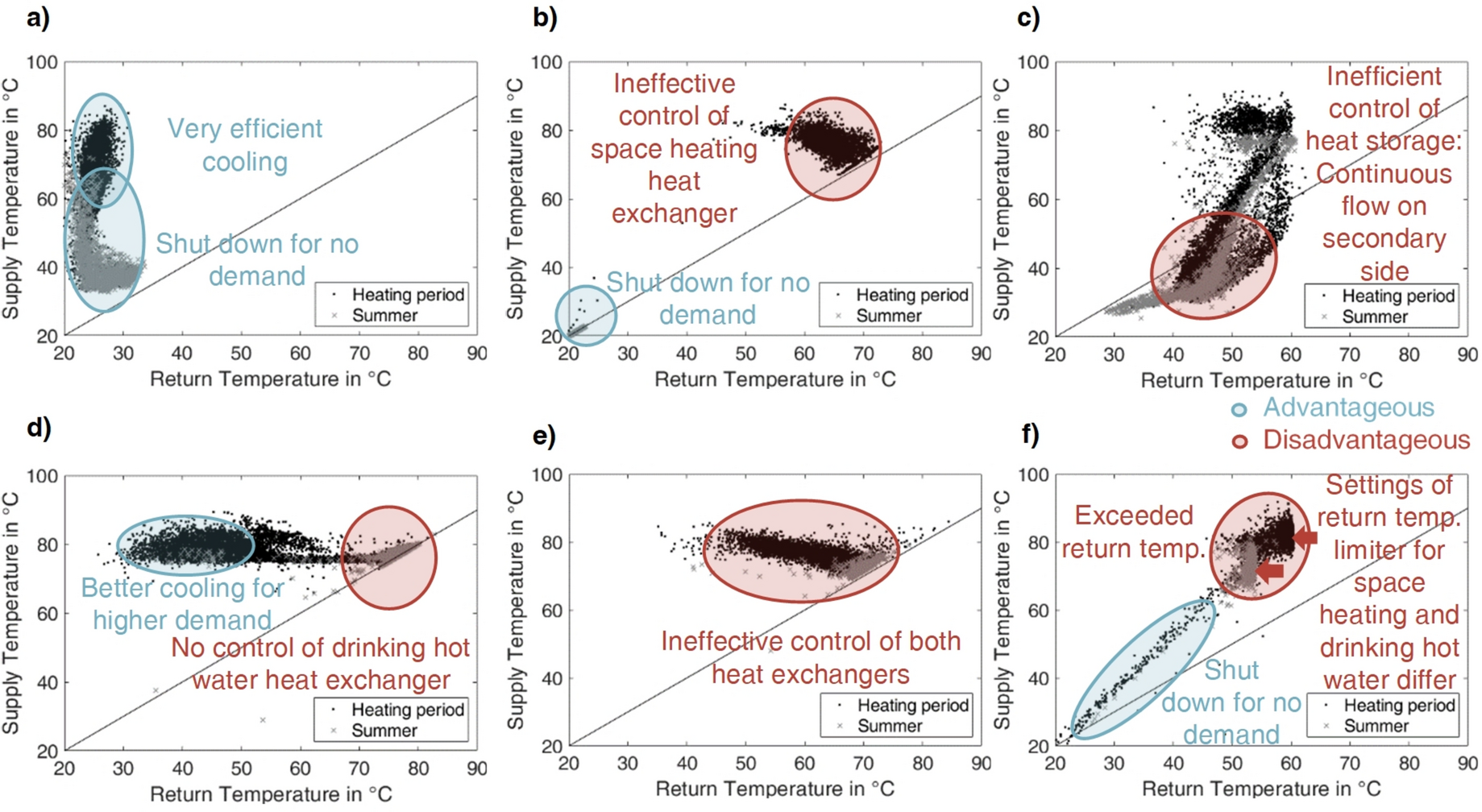

Fig. 9

Special cases of end-user temperature signatures in the model region. (a to f) Distinguish between heating period (black dots) and summer (grey crosses) with an indication of advantageous (blue) and disadvantageous (red) positions of data samples and reference to the impact on the heating system.
