Fig. 3 | Scientific Reports

Fig. 3

From: Surface electromyography evaluation for decoding hand motor intent in children with congenital upper limb deficiency

Fig. 3

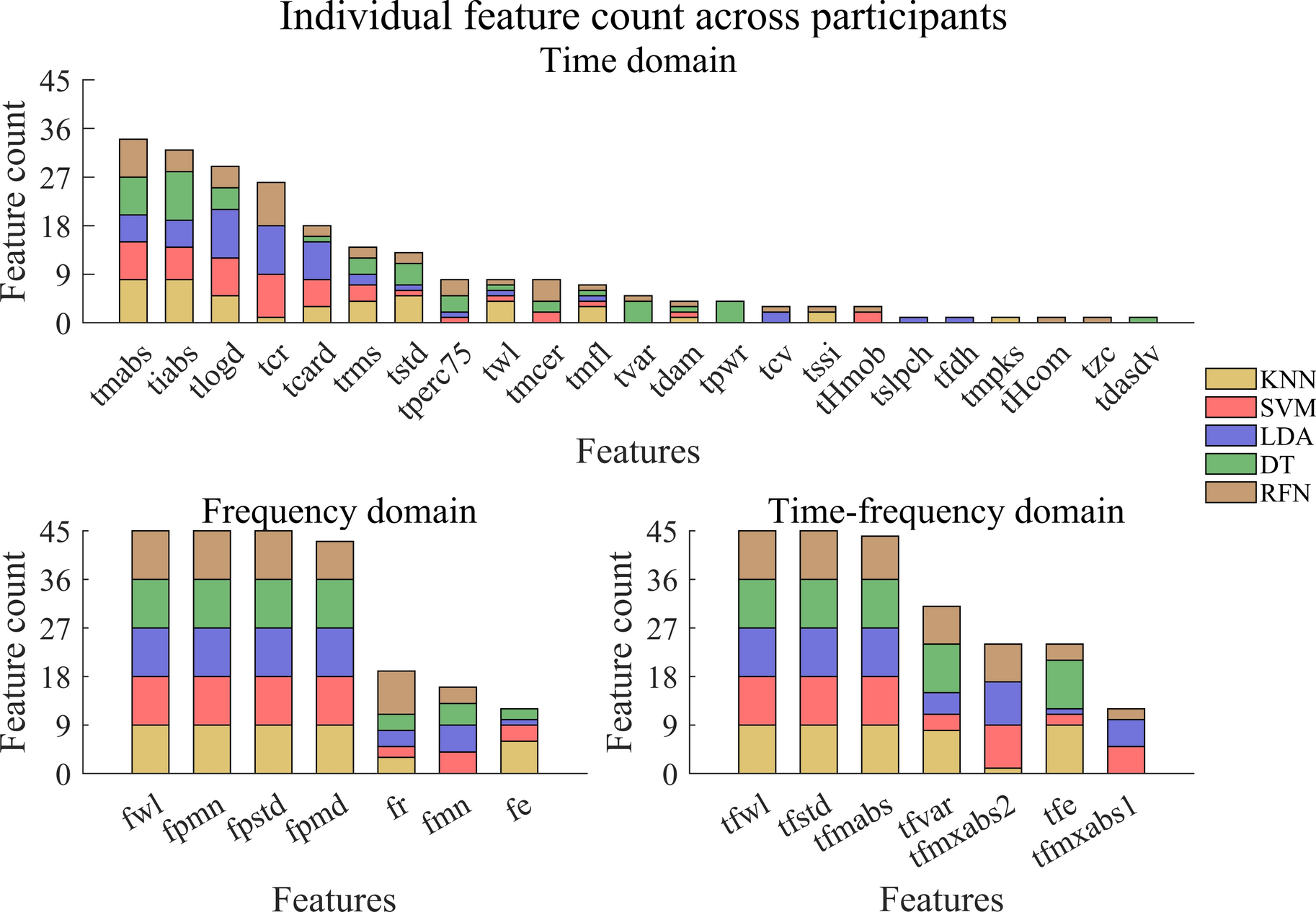

Cumulative count of domain-specific high-performing individual features. The top five high-performing features were identified and counted for a given participant and classifiers. This process was then repeated for every participant, with the results highlighted for the various classification algorithms. The top panel displays the count for the time domain, while the bottom left panel shows the frequency domain, and the bottom right panel shows the time–frequency domain. A count of 45 means that the given feature was in the top five for all nine participants and five classifiers.
