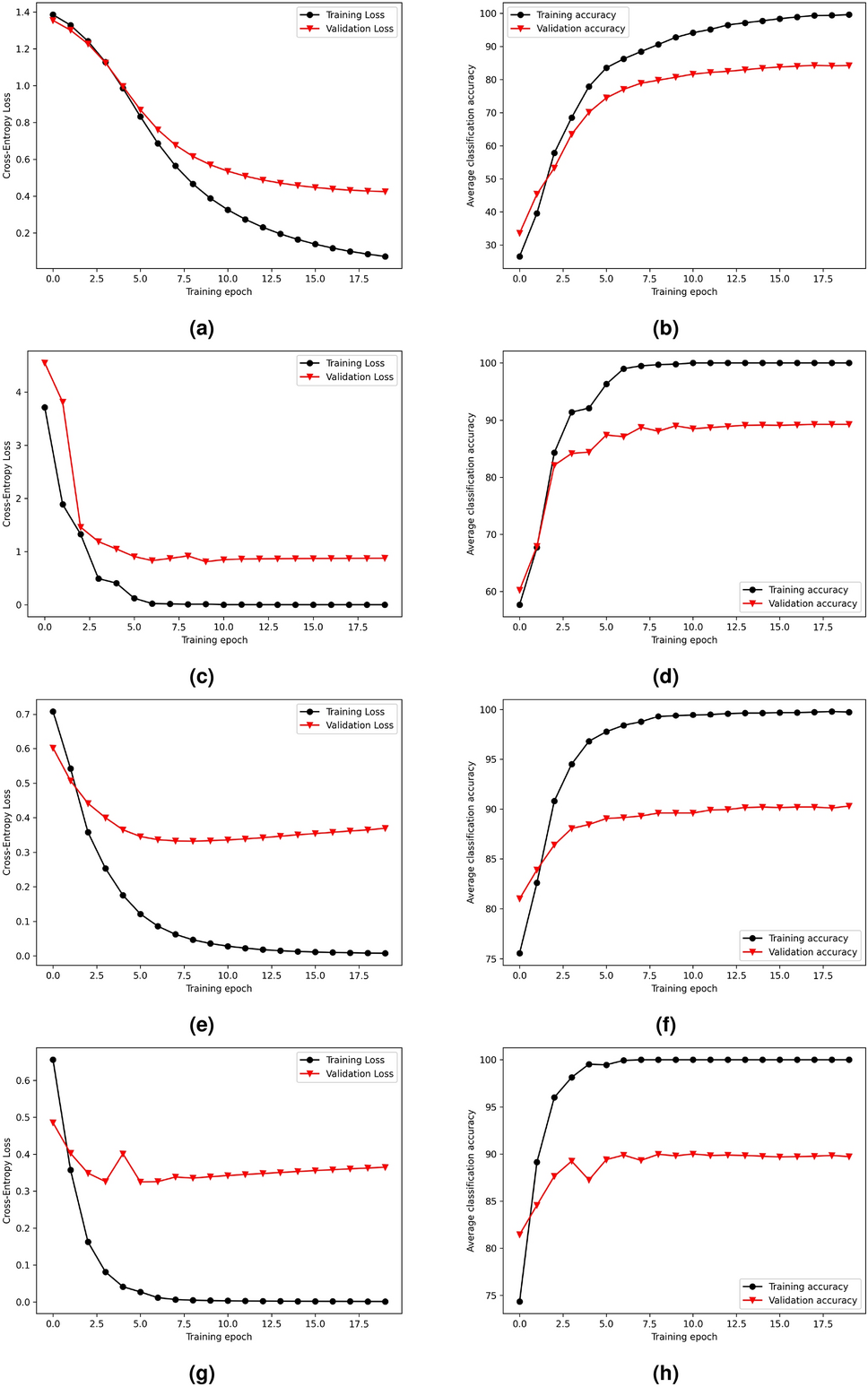

Fig. 11
From: An efficient method for identifying surface damage in hydraulic concrete buildings
(a) and (b) represent the accuracy and loss value variation curves of ResNet-18 on the training and validation sets, respectively, after fine tuning. (c) and (d) represent the accuracy and loss value variation curves of fine-tuned MobileNet-v4 on the training and validation sets, respectively. (e) and (f) represent the accuracy and loss value variation curves of the fine-tuned EfficientNet-B0 for the training and validation sets, respectively. (g) and (h) represent the accuracy and loss value variation curves of the fine-tuned RegNetY-800MF for the training and validation sets, respectively.
