Fig. 1
From: Vertical land motion is underestimated in sea-level projections from the Oka estuary, northern Spain

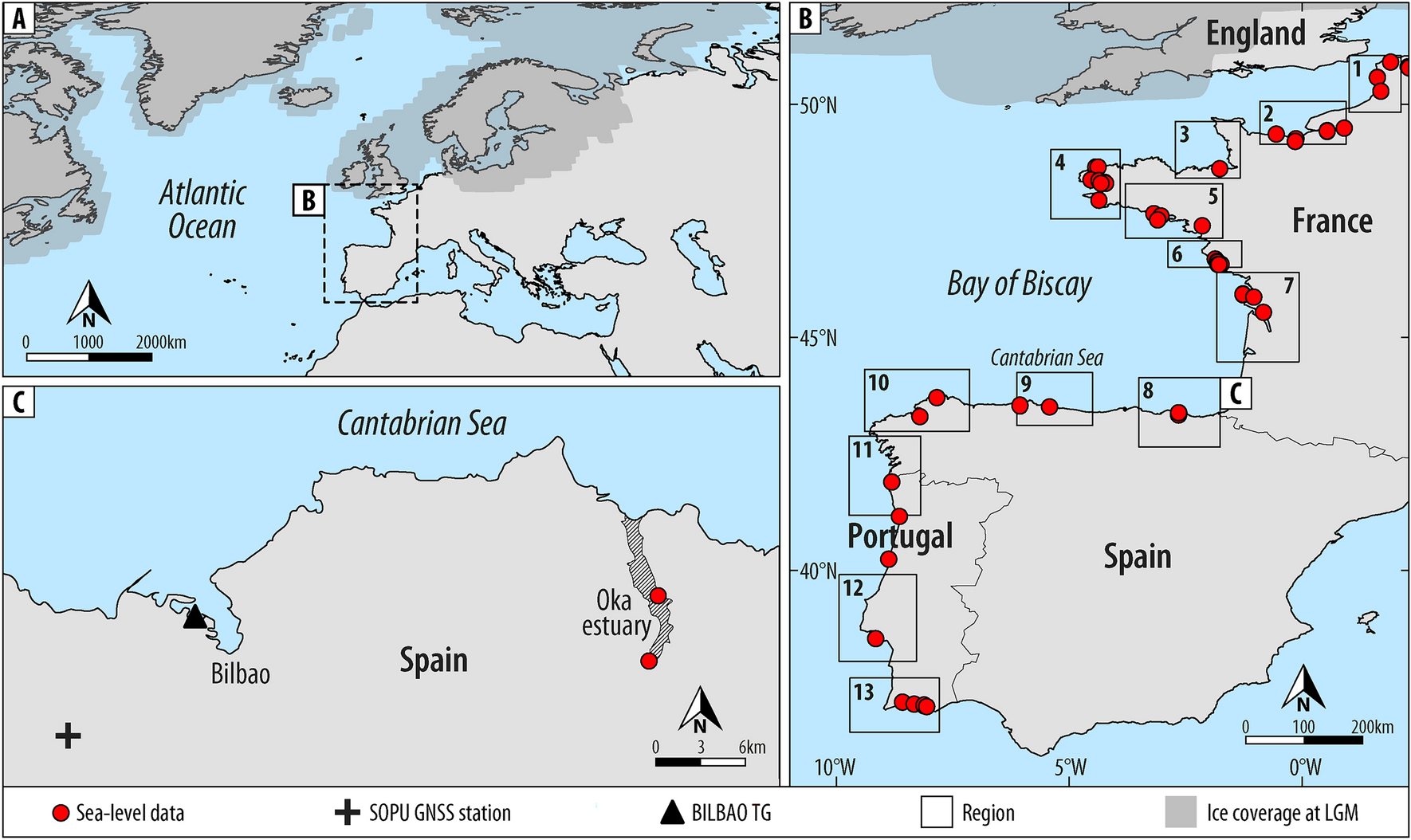

Atlantic coast of Europe study region and location of relative sea-level (RSL) databases. (A) The Atlantic coast of Europe and (B) the updated deglacial RSL database modified after ref.44 showing regions 1–13 and (C) region 8, Oka estuary and location of SOPU Global Navigation Satellite Systems (GNSS) and Bilbao tide gauge (TG) stations. The gray-shaded areas in panel A and B represent the ice coverage at Last Glacial Maximum (LGM, 26 ka BP) of ICE-6G_C45,46. The figure is generated using Generic Mapping Tools software version 5.4.554.
