Fig. 10 | Scientific Reports

Fig. 10

From: Wavefront-aberration-tolerant diffractive deep neural networks using volume holographic optical elements

Fig. 10

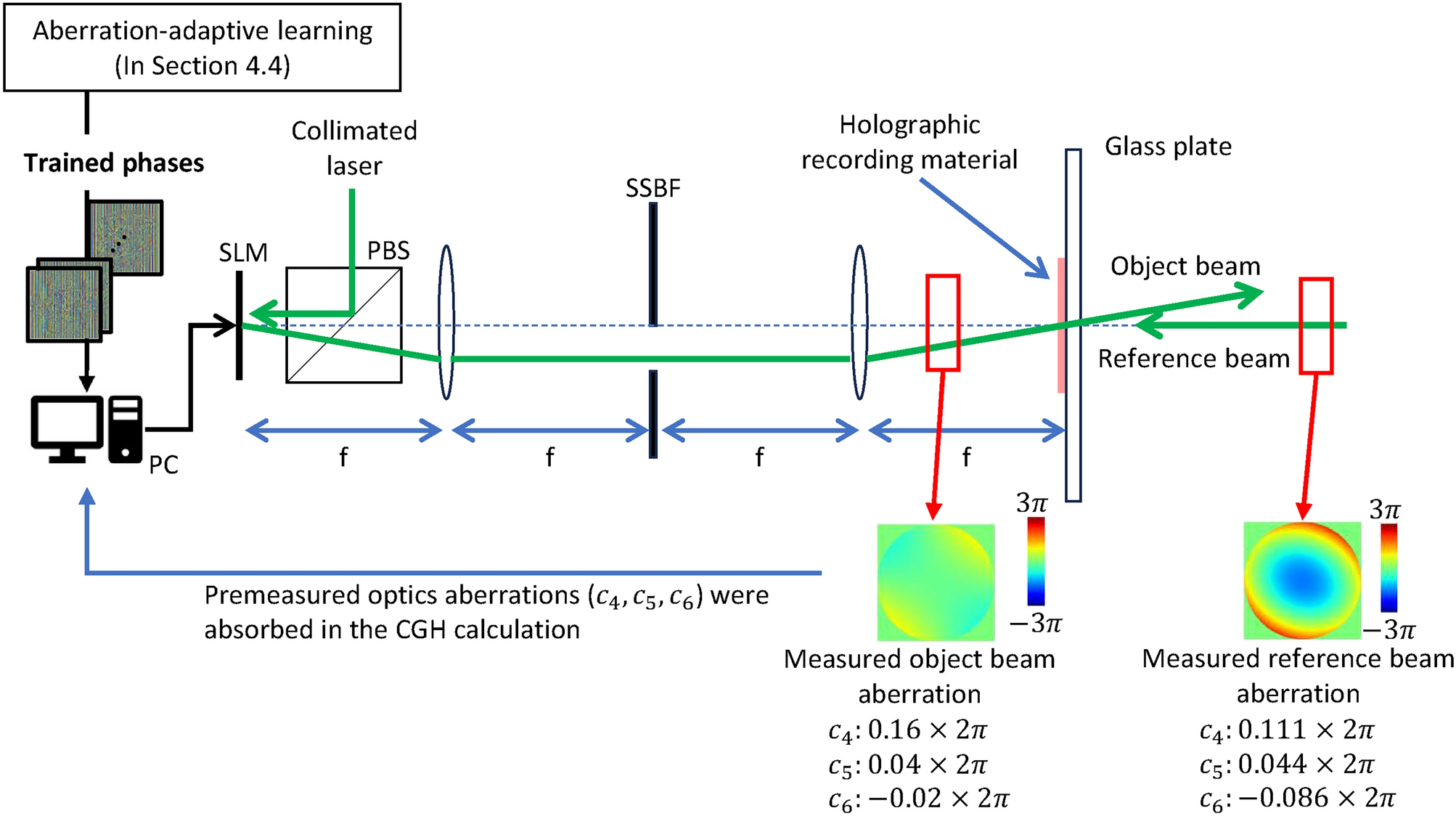

Schematic of optics of wavefront printer. c4, c5, and c6 correspond to the following Zernike polynomial coefficients: c4 oblique astigmatism, c5 defocus, and c6 vertical astigmatism. Each coefficient is the value when the vHOEs are fabricated for the experiments described in Sections “Experimental setup”, “Optical experiments”. SSBF single-sideband filter.
