Fig. 10
From: Fault detection for Li-ion batteries of electric vehicles with segmented regression method

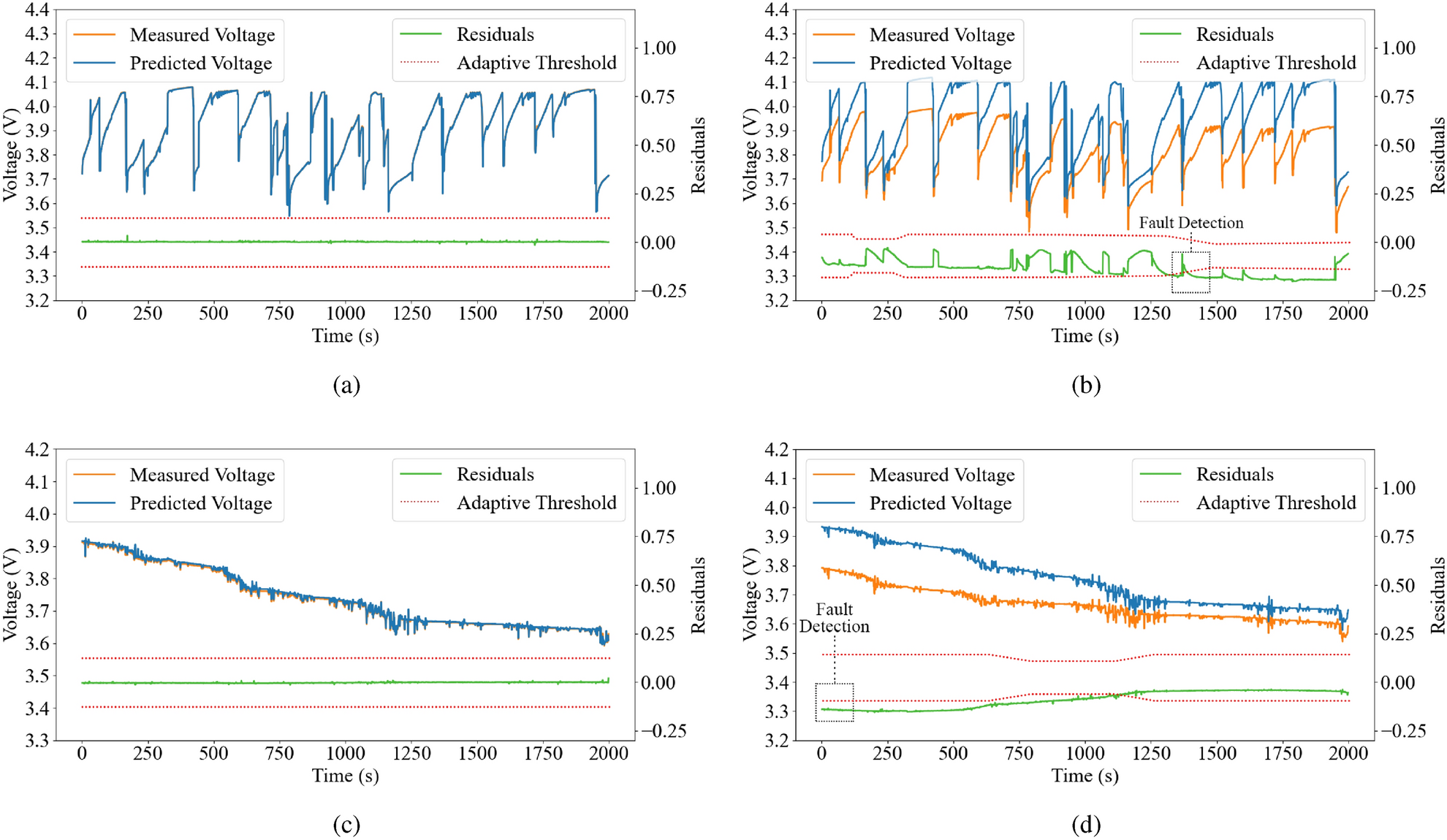

Results of fault detection based on adaptive threshold (a) Cell 16 (Charging) (b) Cell 49 (Charging) (c) Cell 32 (Discharging) (d) Cell 49 (Discharging).
