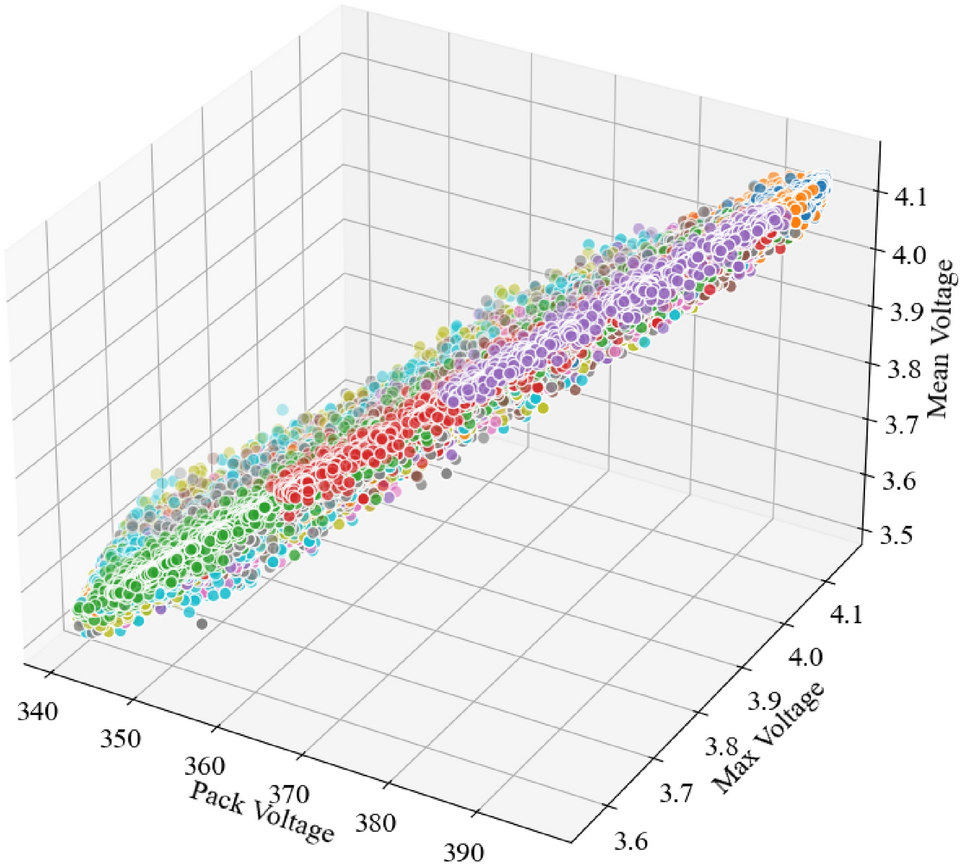

Fig. 6
From: Fault detection for Li-ion batteries of electric vehicles with segmented regression method
3D scatter plot of battery cell voltage data. The plot visualizes the segmented regression applied to battery cell voltage data, with colors representing different segments.
