Fig. 5
From: Study on jet dynamic impact performance under the influence of standoff

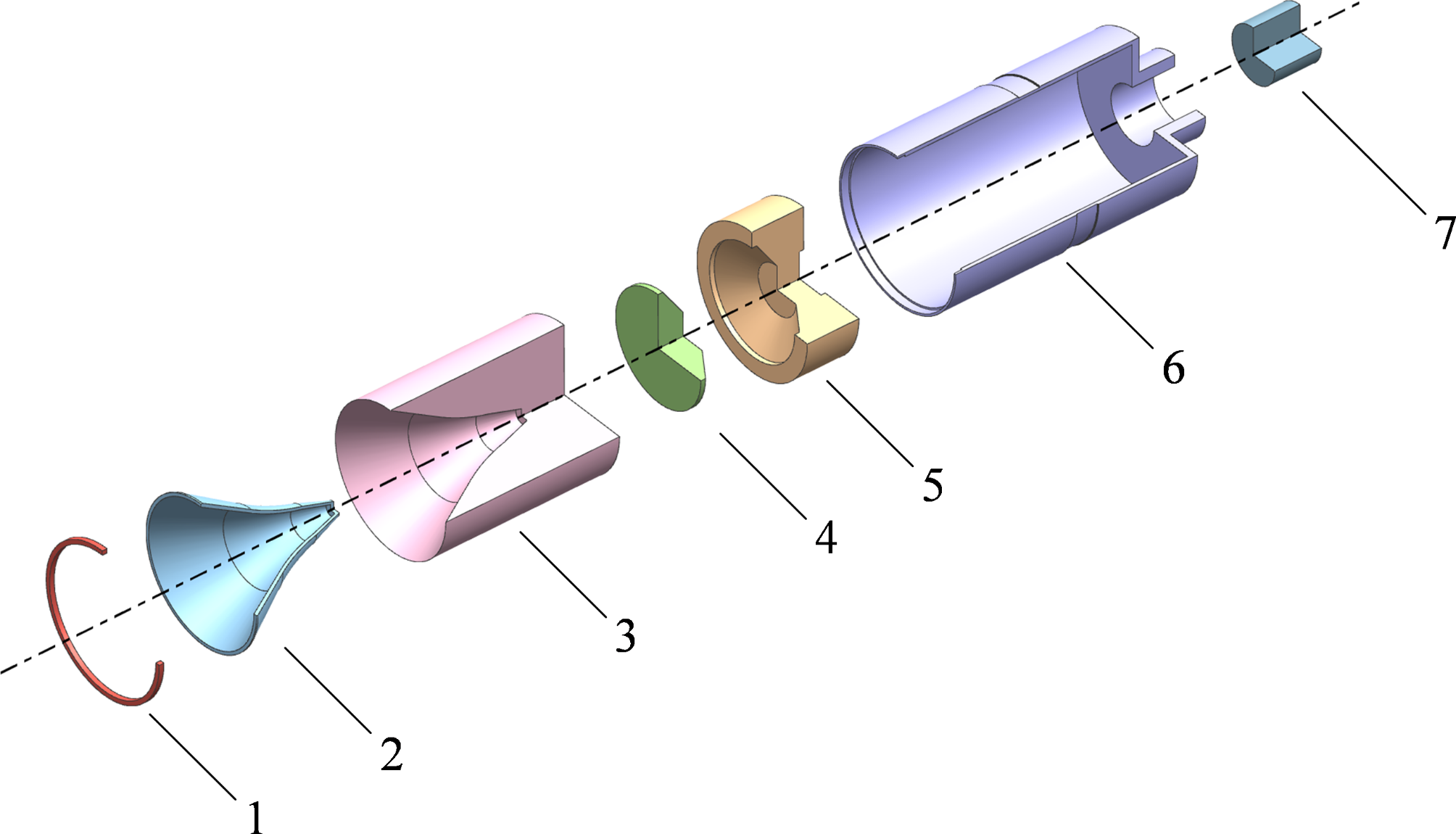

Schematic of shaped charge structure. 1.ring 2.liner 3.main explosive 4.wave shaper 5.auxiliary charges 6.casing 7.detonator.
