From: Three-dimensional structure of entire hydrated murine hearts at histological resolution

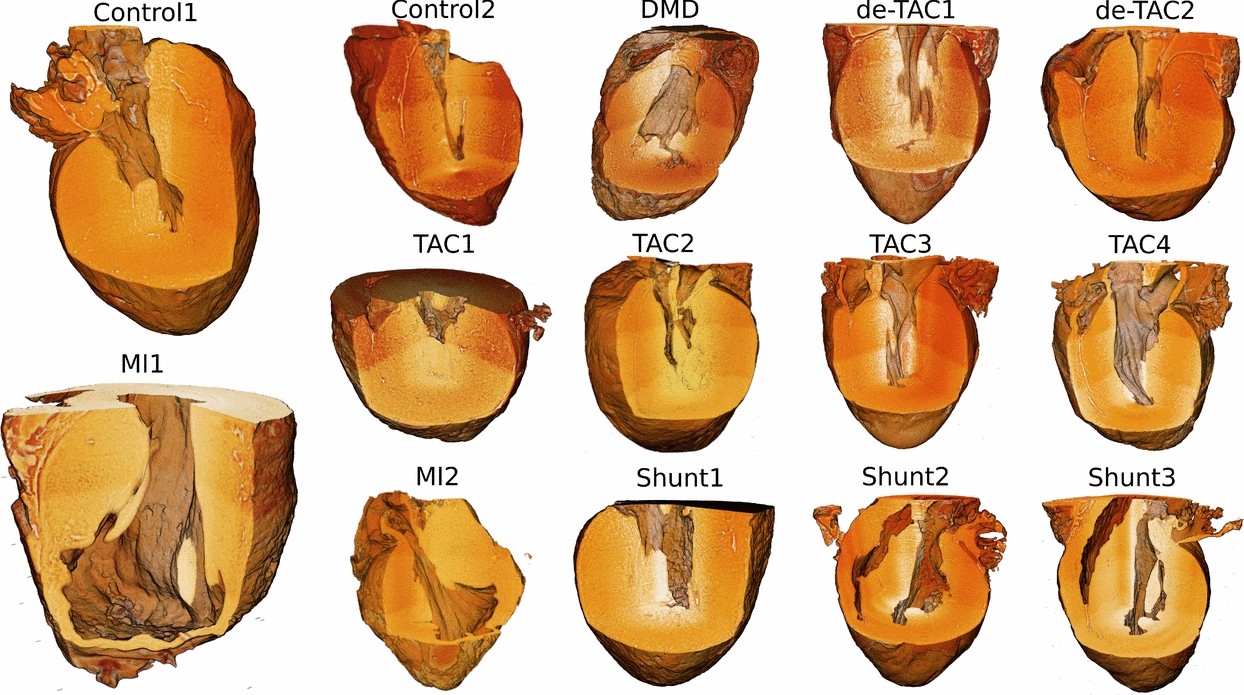

3d segmentation of the pathological series (ID17 datasets), grouped according to the respective pathology, as indicated by the corresponding labels. Two hearts (control, MI) are presented in an enlarged view. The same tabular arrangement is kept for the three results figures below. Density values for voxels within the segmentation mask are coded in false color. A cuboid is used to carve out the upper front part, in order to enable visual inspection of the interior. Figures have been created by Avizo 9.2.0 Lite, Thermo Fisher Scientific, Germany.
