Fig. 4
From: Vitality insights of fish escaping from a sorting grid installed on a bottom trawl net

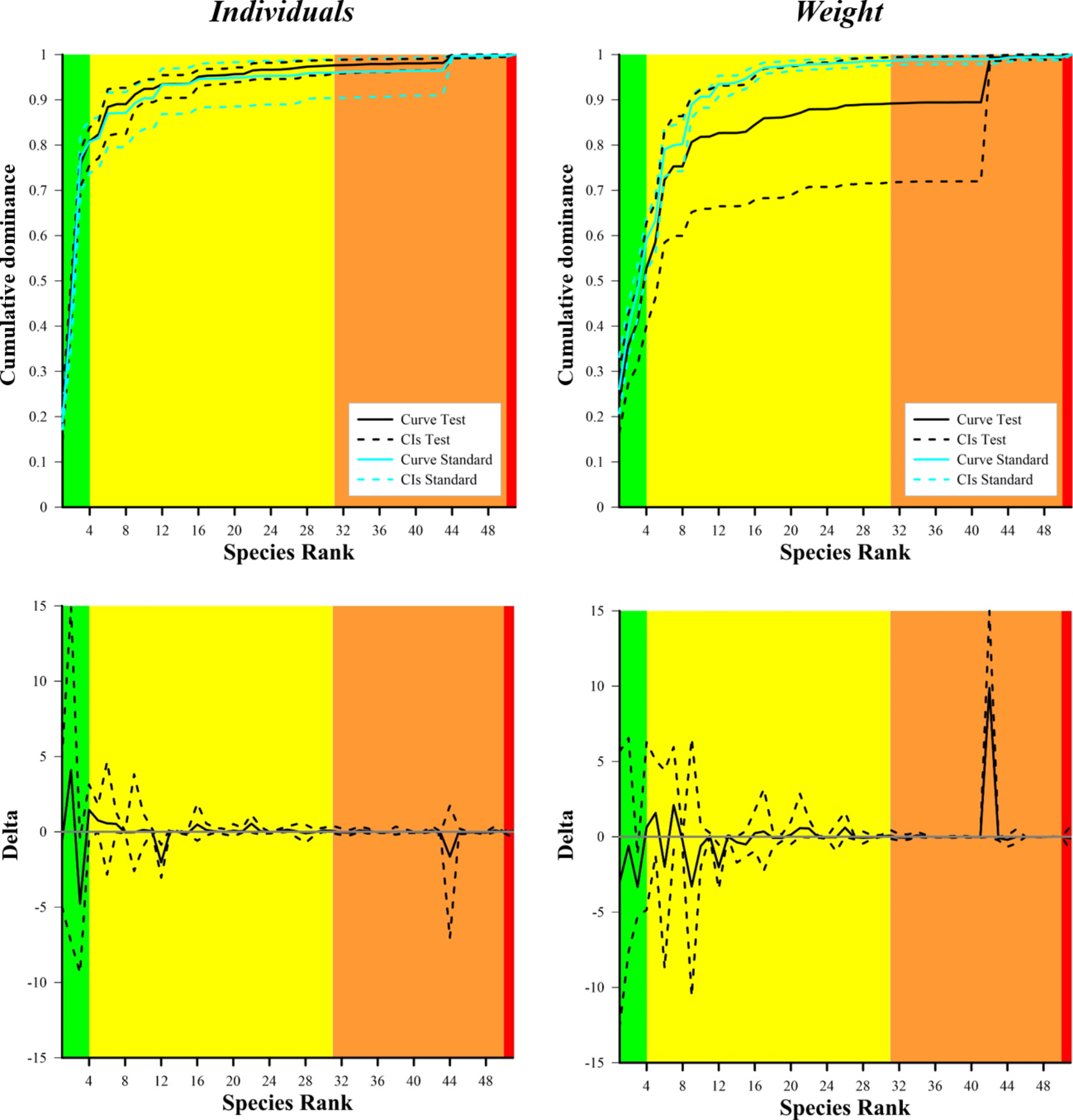

Top: Cumulative species dominance in the total catch of the test (black curve in solid line with 95% CIs in black dashed lines) and standard (light blue curve in solid line with 95% CIs in blue dashed lines) nets, in both number of individuals (left) and weight (right). Bottom: Delta plots resulting from the comparison of the species catch dominance (black curve in solid line with 95% CIs in black dashed lines) between the test and standard net, in both number of individuals (left) and weight (right). The 0 grey horizontal line represents an equal proportion between the two nets. In all the graphs, the green, yellow, orange and red areas represent the target species, the other species of commercial value, the species of no commercial value and the protected species, respectively.
