From: Characterization and assessment of hydrogen leakage mechanisms in salt caverns

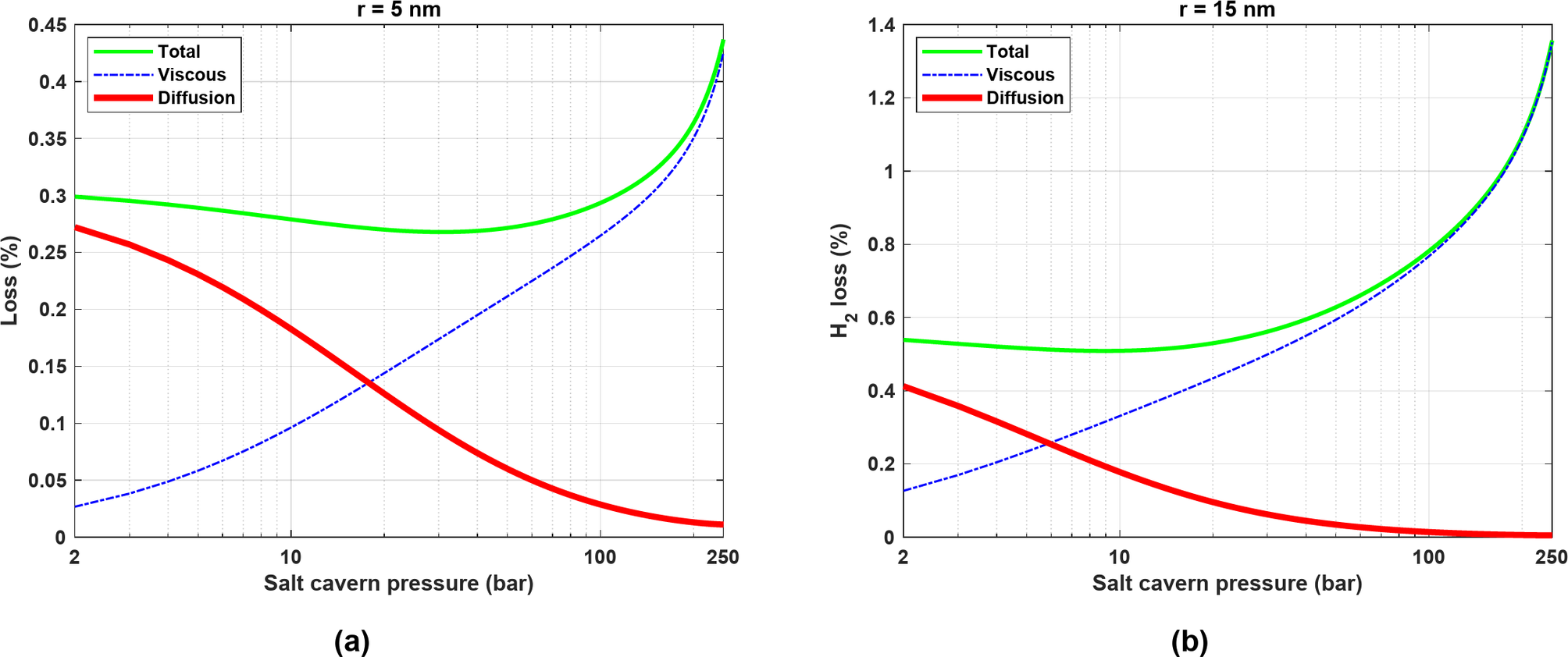

Impact of pressure on the relative contributions of viscous and diffusion mechanisms on H2 leakage: (a) r = 5 nm and (b) r = 15 nm.
