Fig. 16
From: Characterization and assessment of hydrogen leakage mechanisms in salt caverns

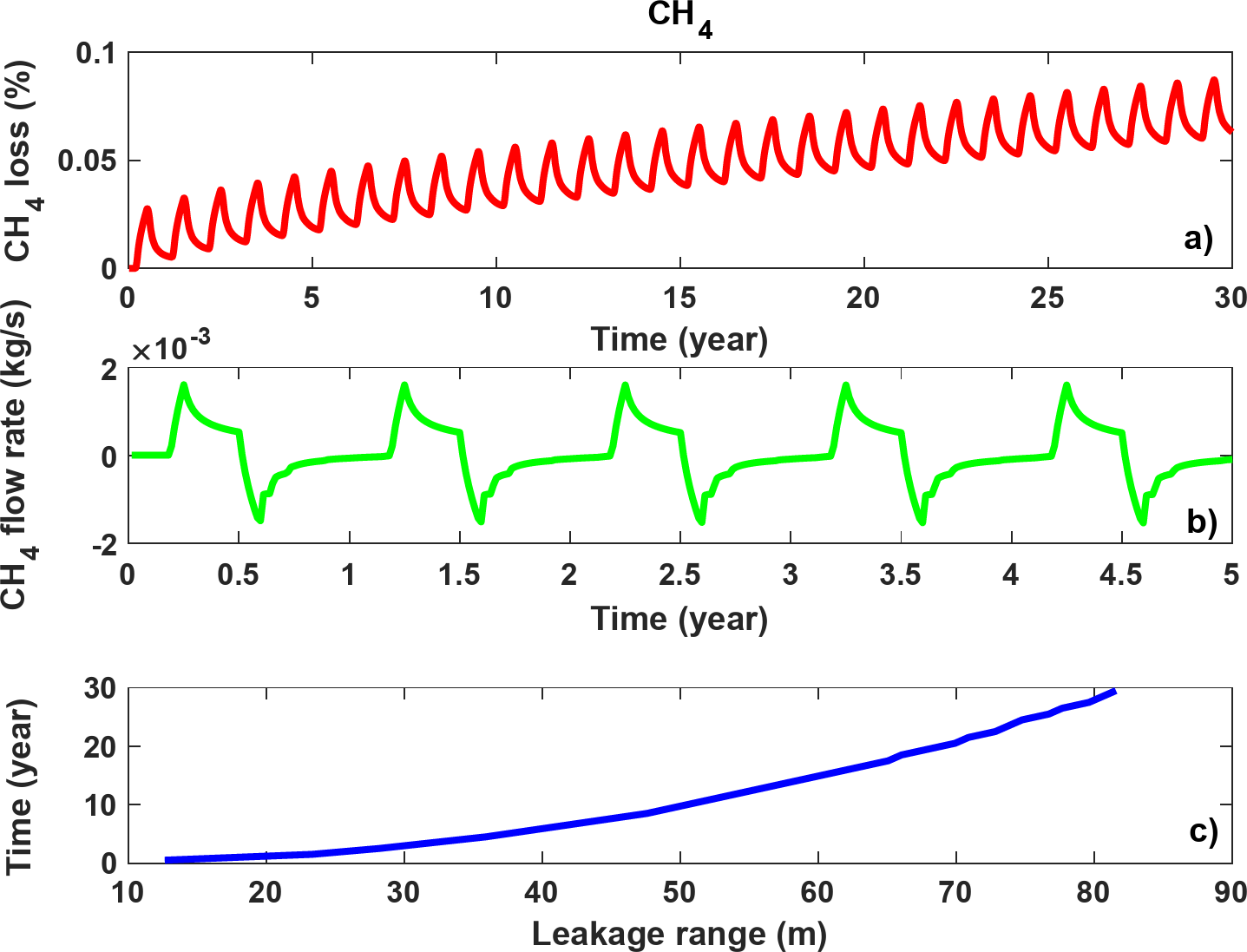

CH4 storage in the base model over 30 years of cyclic storage: (a) Percentage loss, (b) CH4 flow rate between the salt cavern and the formation (positive values indicate flow from the salt cavern into the formation, while negative values indicate the backflow), and (c) leakage range.
