Fig. 7
From: A kurtosis-ESPRIT algorithm for RealTime stability assessment in droop controlled microgrids

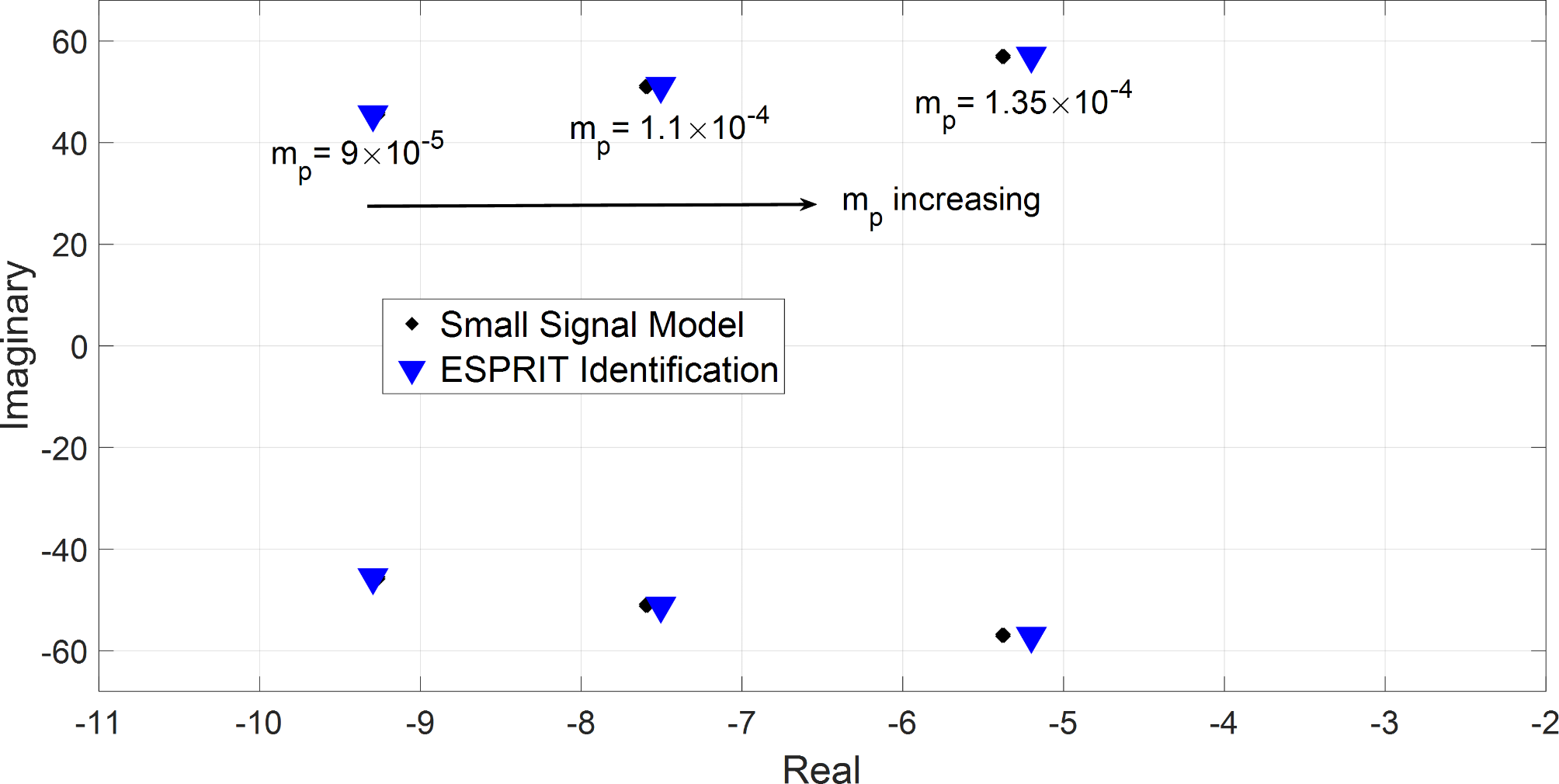

Analytically derived modes versus estimated modes for the 3-bus benchmark at different active power droop gains, mp= (0.9, 1.1, 1.35) ×10− 4.
