Fig. 8
From: A kurtosis-ESPRIT algorithm for RealTime stability assessment in droop controlled microgrids

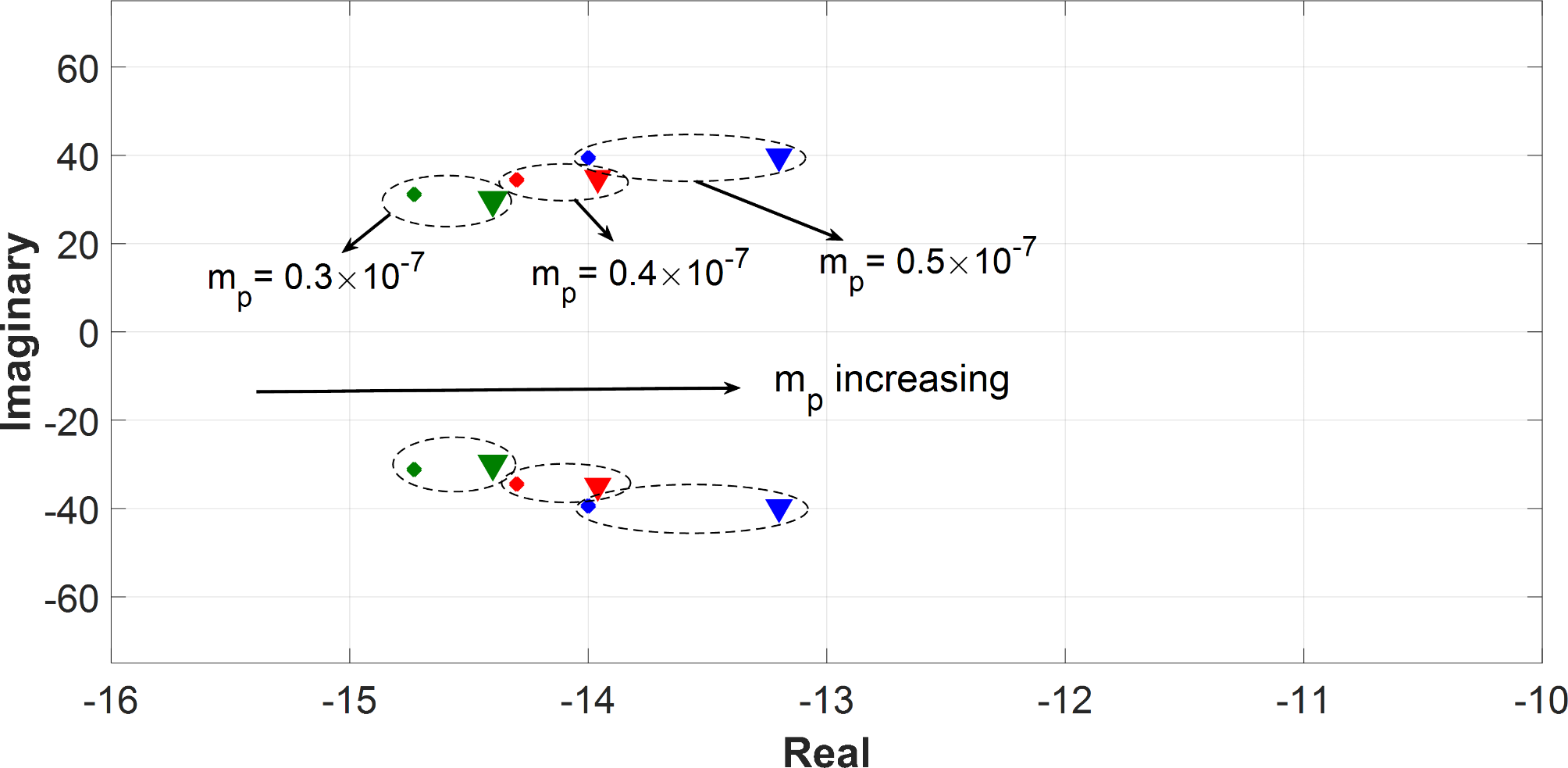

Analytically derived modes versus estimated modes for the modified CIGRE benchmark at different active power droop gains, mp= (0.3, 0.4, 0.5) ×10− 7.
