From: Extracorporeal hyperoxygenation therapy (EHT) for CO poisoning: in vitro and in vivo feasibility of a full-scale batch system

Fig. 4

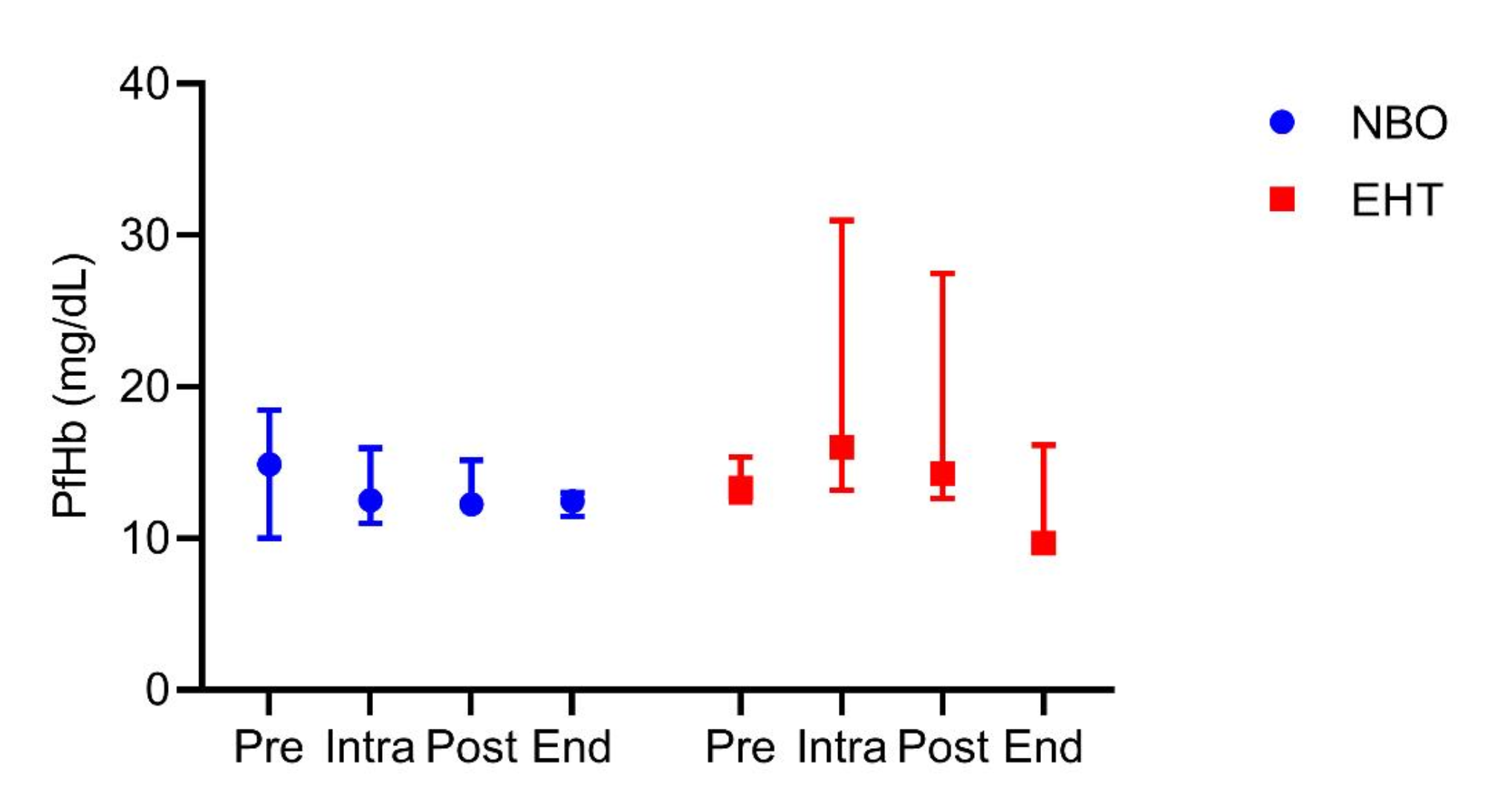

Plasma free hemoglobin (PfHb) at different times during the in vivo experiments: “Pre” at start of recovery phase, “Intra” at 60 min of recovery phase, “Post” directly after recovery phase, and “End” at termination of animal trial (360 min after start of recovery phase). (N = 6; 3 – NBO, 3 - EHT). The data is presented as median and range.
