Fig. 2 | Scientific Reports

Fig. 2

From: Quantitative relationship between hippocampal injury and mechanical load and body weight in closed head injury of male rats using quadratic orthogonal regression

Fig. 2

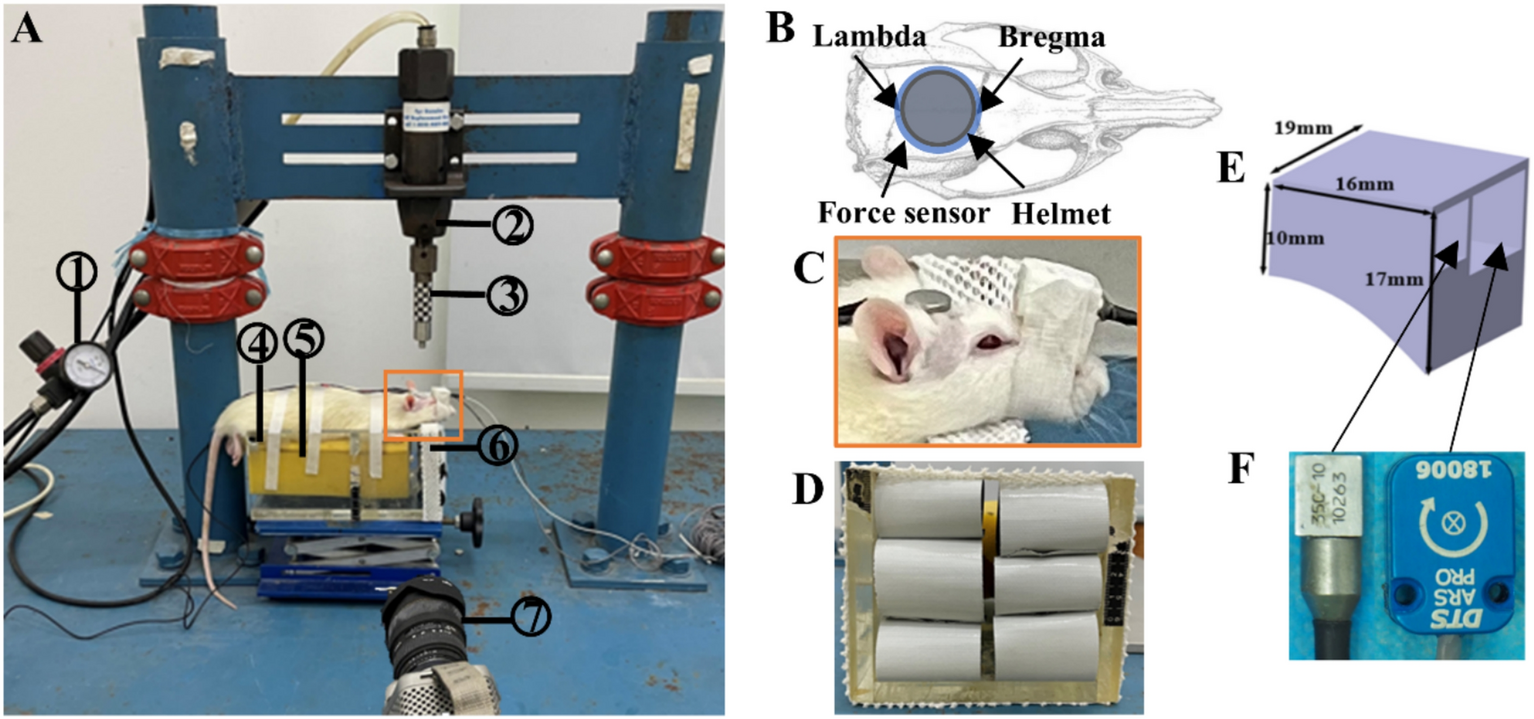

Diagram of the TBI experiment. A BIM-IV rat pneumatic impact machine, ① regulator, ② impact cylinder, ③ impact rod, ④ acrylic box, ⑤ sponge, ⑥ elastic mesh, ⑦ high-speed video camera, B position of the helmet, and C strong adhesive tape for preventing secondary rebound.
