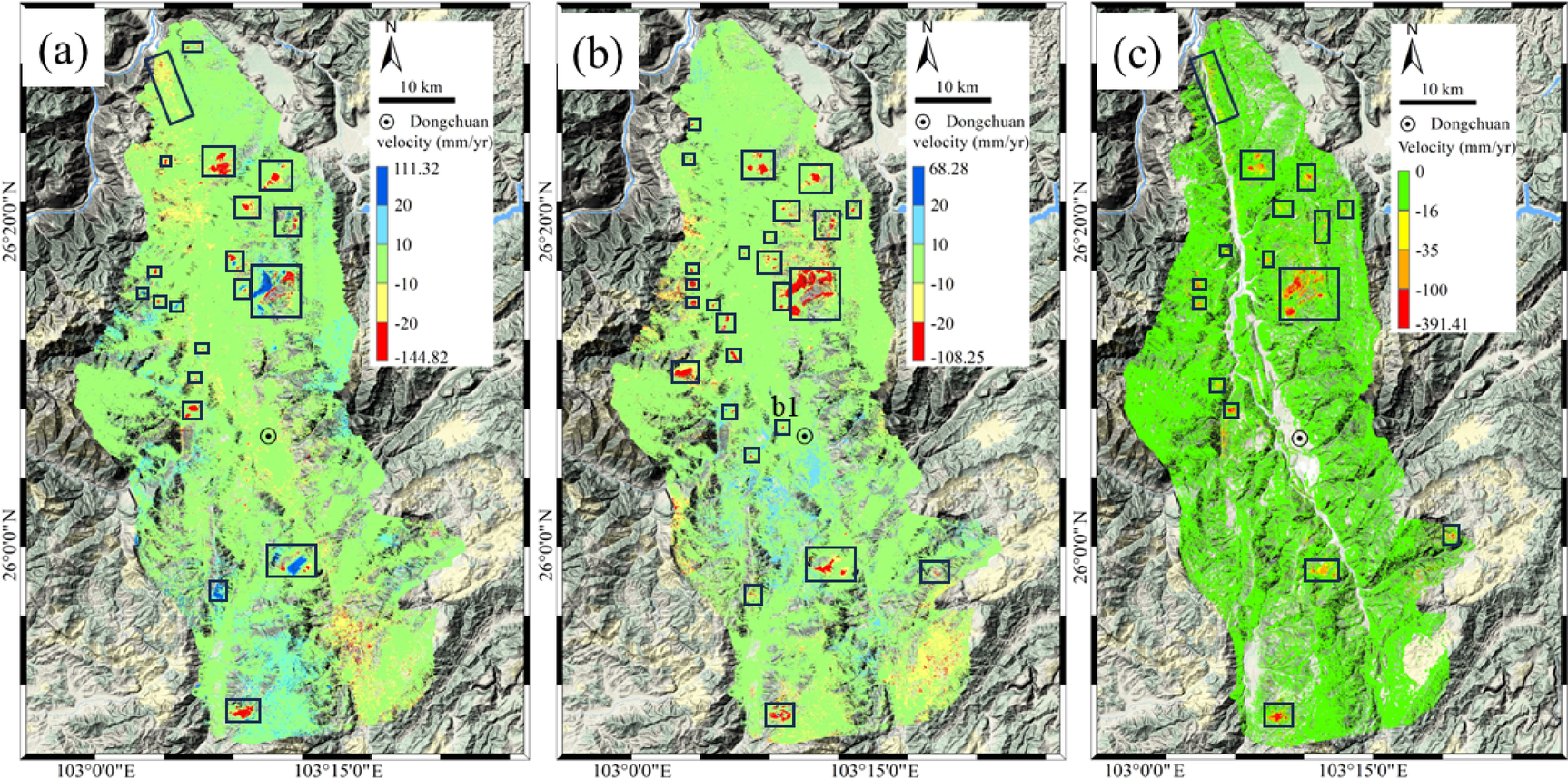

Fig. 5
From: Detection and assessment of potential landslides in the Xiaojiang River Basin using SBAS-InSAR
Projection of LOS surface deformation in the three directions. (a) in the E-W direction, where positive values represent eastward movement, and negative values represent westward movement. (b) in the U-D direction, where positive values indicate eastward displacement and negative values indicate westward displacement. (c) in the D-S direction, where negative values indicate that sliding occurred downwards along the slope.
