From: Frequency-doubled chirped-pulse dual-comb generation in the near-UV: combined vs separated beam investigations of Rb atoms and NO2 near 420 nm

Fig. 3

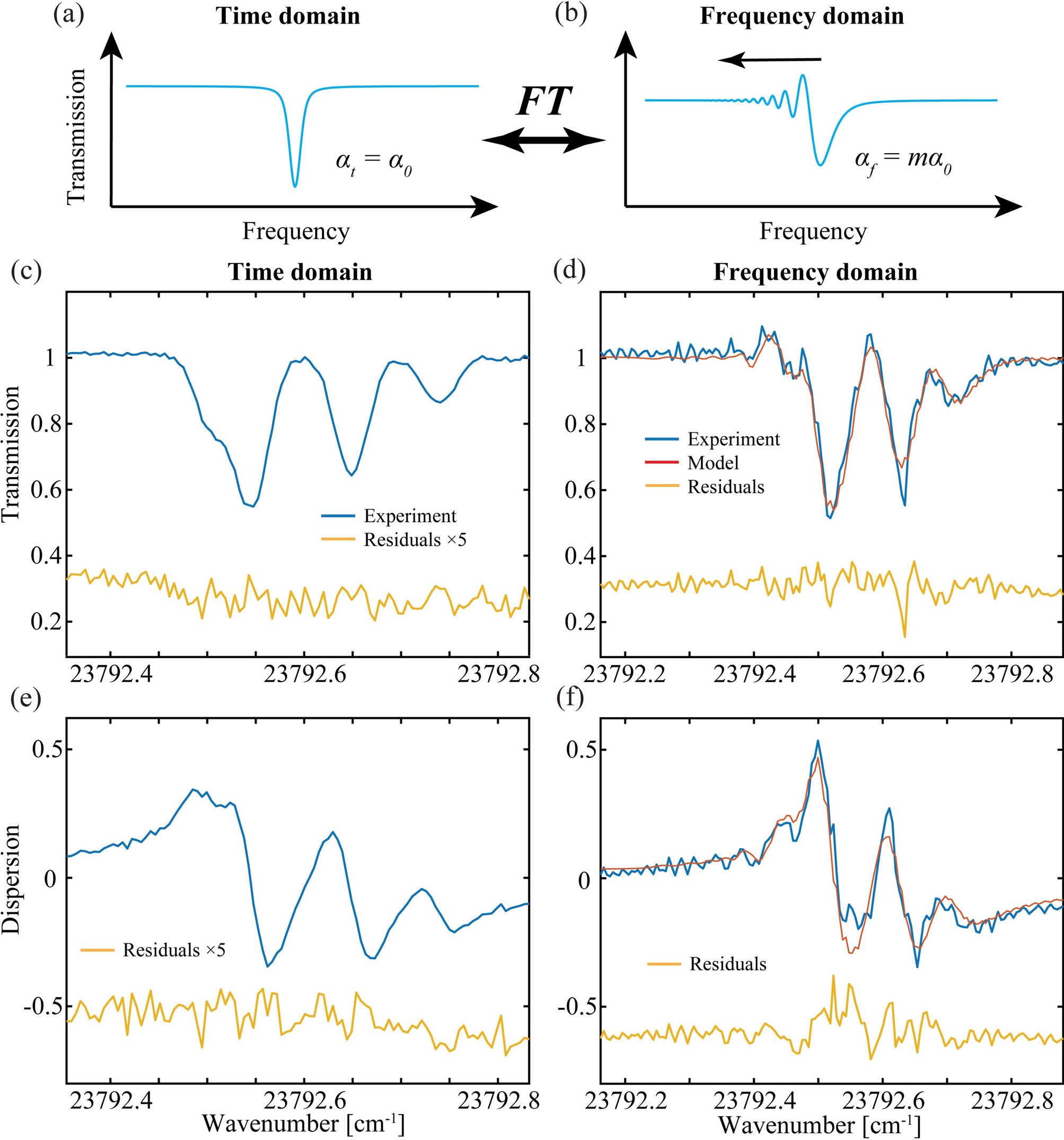

Rb SB results. (a) A model of time domain resonance that shows a symmetric line shape while in (b) the frequency domain model shows rapid passage in one direction. (c) The experimental time domain amplitude and (e) phase spectra of Rb atoms in blue, and the residuals (× 5) in yellow. The frequency domain (d) amplitude and (f) phase spectra in blue, the models in red and unscaled residuals in yellow.
