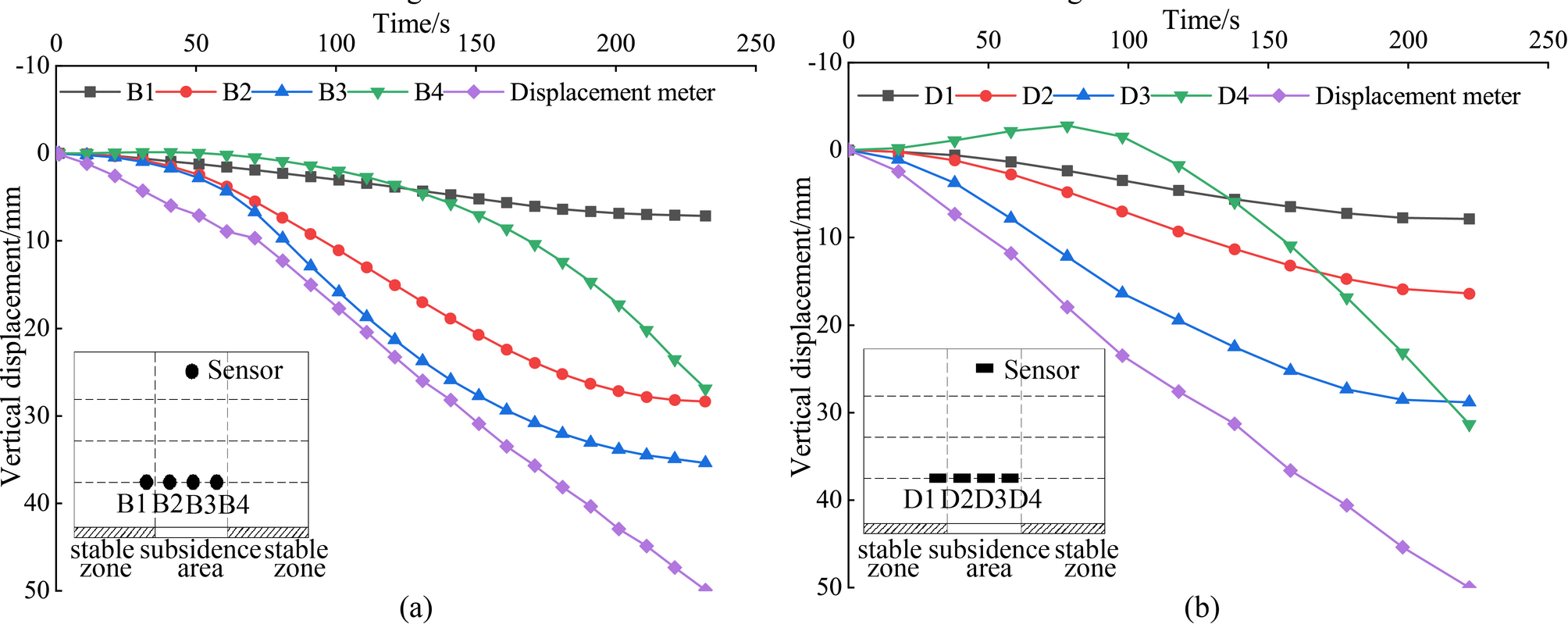

Fig. 12

Analysis of vertical displacement in the subsidence zone (h = 300 mm). (a) The vertical displacement of the MEMS spherical monitoring devices in the subsidence zone; (b) the vertical displacement of the MEMS sensors in the subsidence zone.
