Fig. 4 | Scientific Reports

Fig. 4

From: ANO1 channels are expressed in mouse urethral smooth muscle but do not contribute to agonist or neurally evoked contractions

Fig. 4

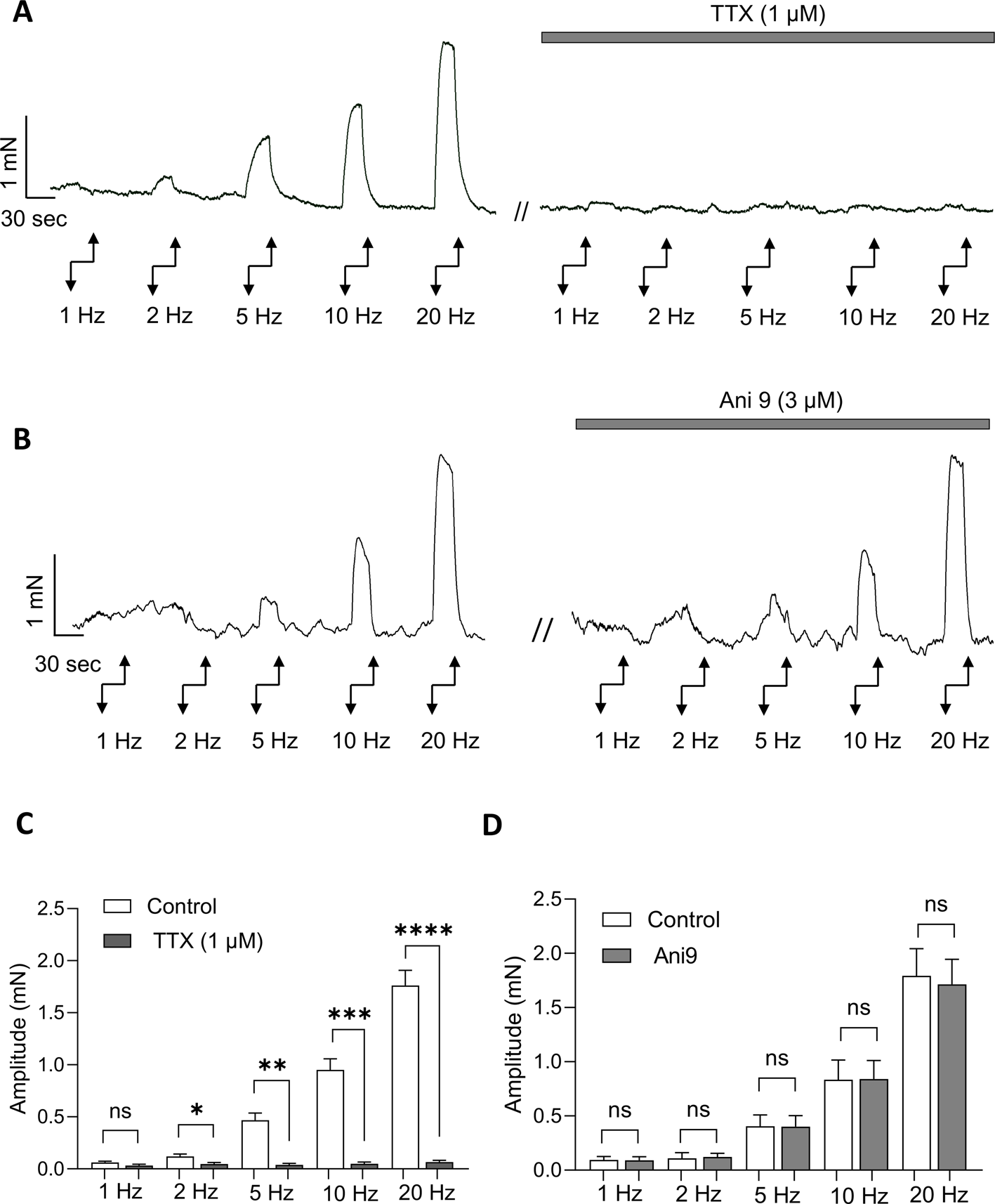

Ani9 does not affect electrical field stimulation (EFS)-evoked contractions of male murine USM. (A) EFS evokes contractions of male USM, which are increased in amplitude as EFS frequency is increased. These responses were abolished by tetrodotoxin (TTX, 1µM). (B) EFS evoked-contractions of male USM responses were unaffected by Ani9 (3µM). (C) Summary effects of TTX on EFS induced contraction amplitude in USM (n = 6). (D) Summary effects of Ani9 on EFS induced contraction amplitude in USM (n = 6).
