Fig. 3
From: Dynamics of plasma reconfiguration after pellet injection in Heliotron J

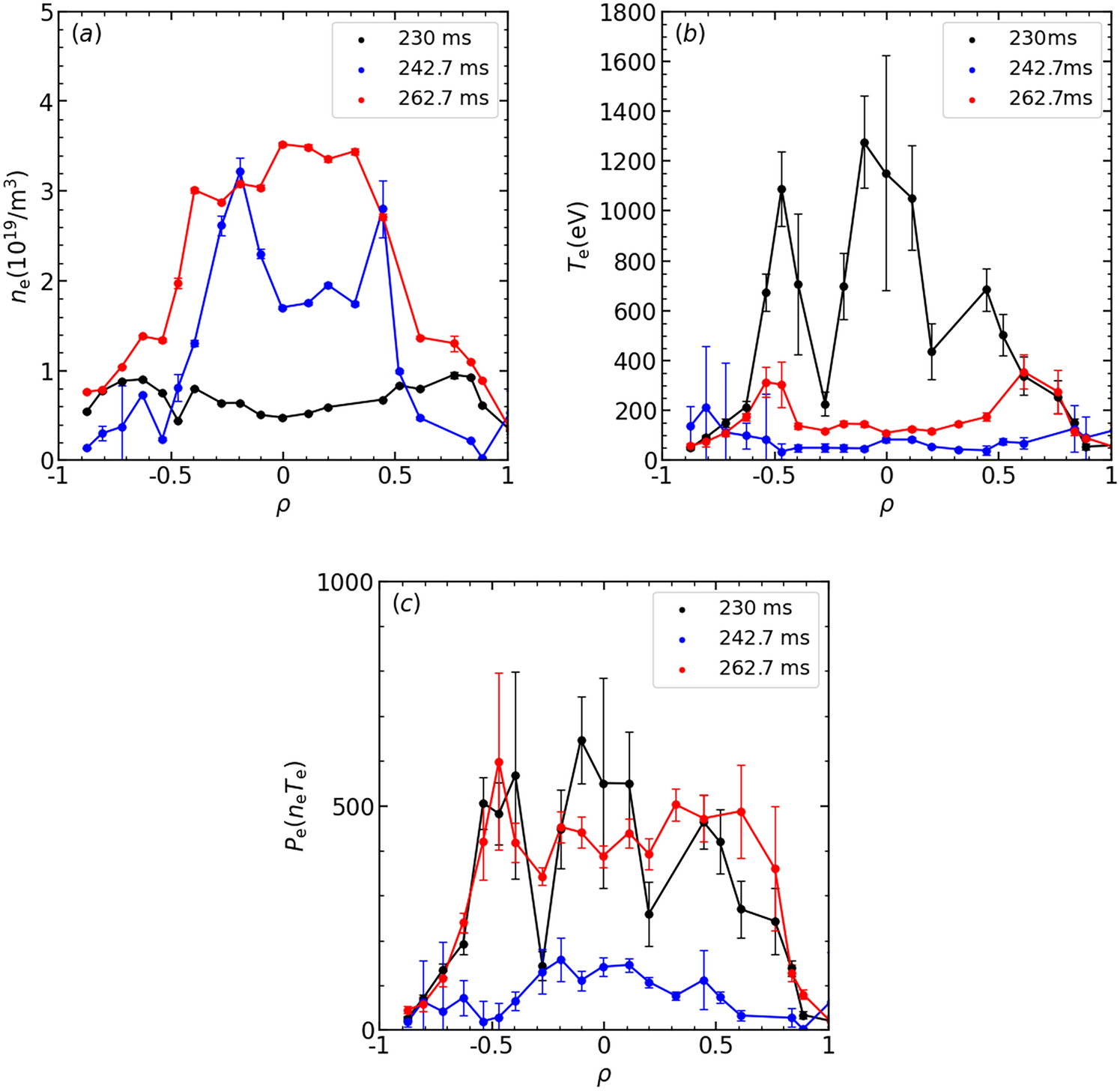

Radial profiles of (a) ne, (b) Te and (c) Pe measured by tomson scattering at three different time-slices (230 ms (black), 242.7 ms (blue) and 262.7 ms (red)).
