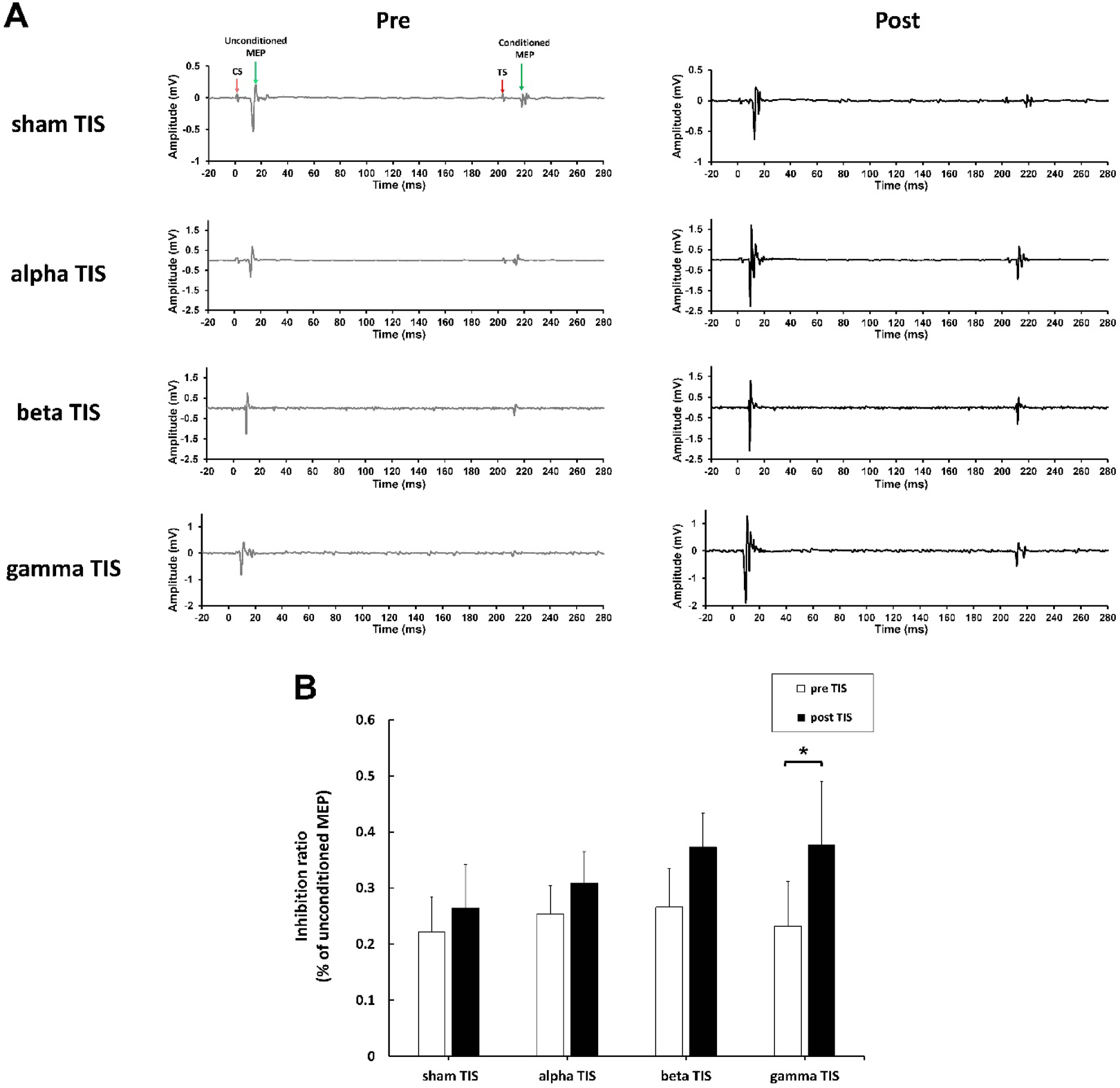

Fig. 6
From: Temporal interference stimulation over the motor cortex enhances cortical excitability in rats
(A) Representations in long-interval intracortical inhibition (LICI) showing unconditioned and conditioned MEPs response conditioning stimulus (CS) and testing stimulus (TS) pre- and post-stimulation in the sham, alpha TIS, beta TIS, and gamma TIS groups. (B) Changes of long interval intracortical inhibition (LICI). The ratio of conditioned stimulus to test stimulus alone when the inter-stimulus interval was set to 200 ms. The data are presented as means and the standard error of the mean (SEM); *p ≤ 0.05.
