From: Laser driven FLASH radiobiology using a high dose and ultra high dose rate single pulse proton source

Fig. 14The alternative text for this image may have been generated using AI.

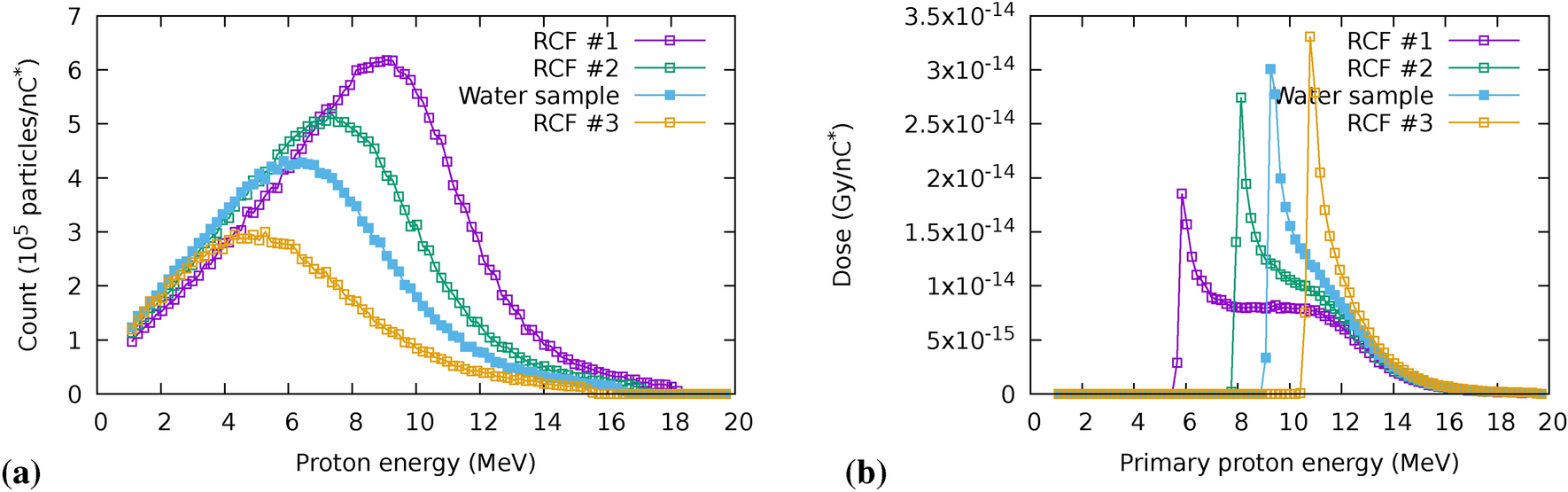

Spectral distribution of primary particles (a) and contribution to deposited dose of spectral components from the exponential spectrum of the proton source (b) at sensitive volumes in the target, within a 10 mm diameter ROI. Simulation in dose escalation configuration with \(\Delta z={275}\,\hbox {mm}\) (Fig. 3a).
