From: Laser driven FLASH radiobiology using a high dose and ultra high dose rate single pulse proton source

Fig. 2The alt text for this image may have been generated using AI.

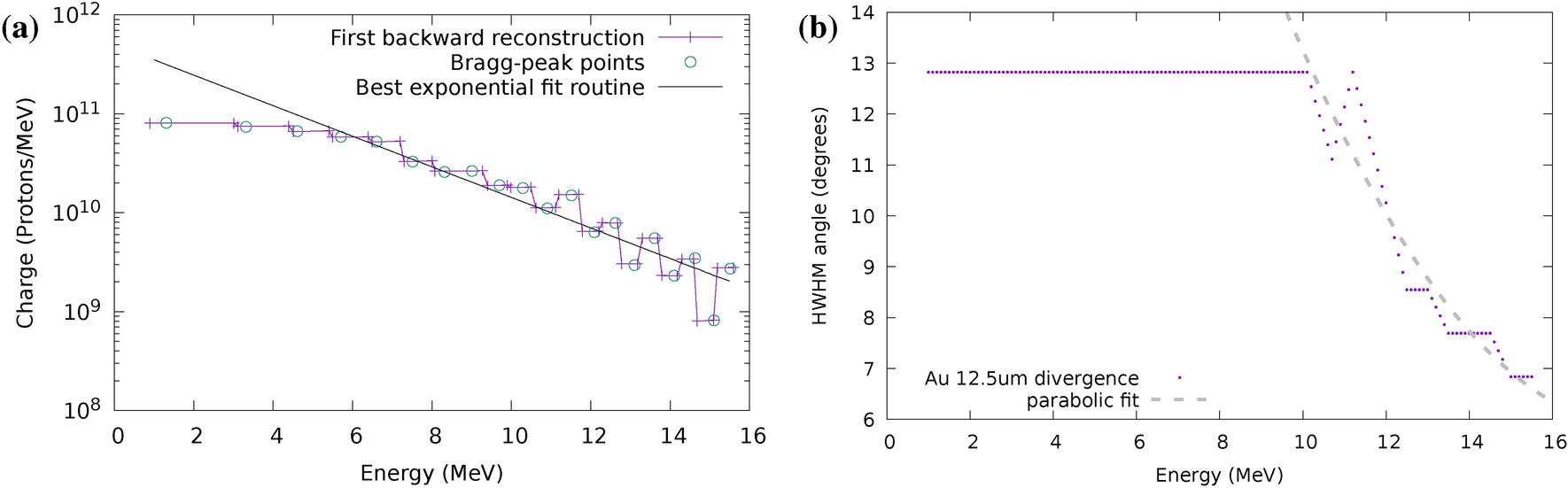

Spectral charge (a) and spectral divergence (b) on a single calibration shot, reconstructed from a stack of 25 HD810 radiochromic films. Circular dots on panel (a) indicate the Bragg peak energy within each foil on the stack. Foils #1 through #4 are saturated; foils #20 through #25 were not exploitable for the fitting procedure and only used to assess the cut-off energy.
