Fig. 6 | Scientific Reports

Fig. 6

From: Laser driven FLASH radiobiology using a high dose and ultra high dose rate single pulse proton source

Fig. 6The alternative text for this image may have been generated using AI.

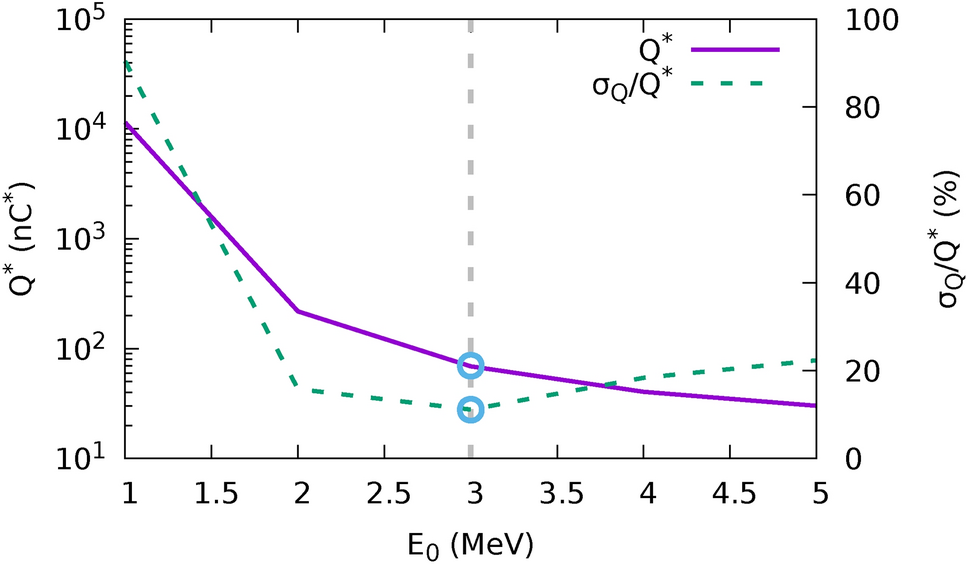

Example of charge extrapolation for one experimental event (one laser shot). Average charge over one set of radiochromic films is plotted at different source temperatures; the associated error, is used to determine the best fitting temperature. \(\sigma _{E_{0}}\) is minimized at \(\textrm{E}_{0}={3} \hbox { MeV}\) with an error of 11.1 %, which points to a charge of \({69.9}{\hbox { nC}^{*}}\).
