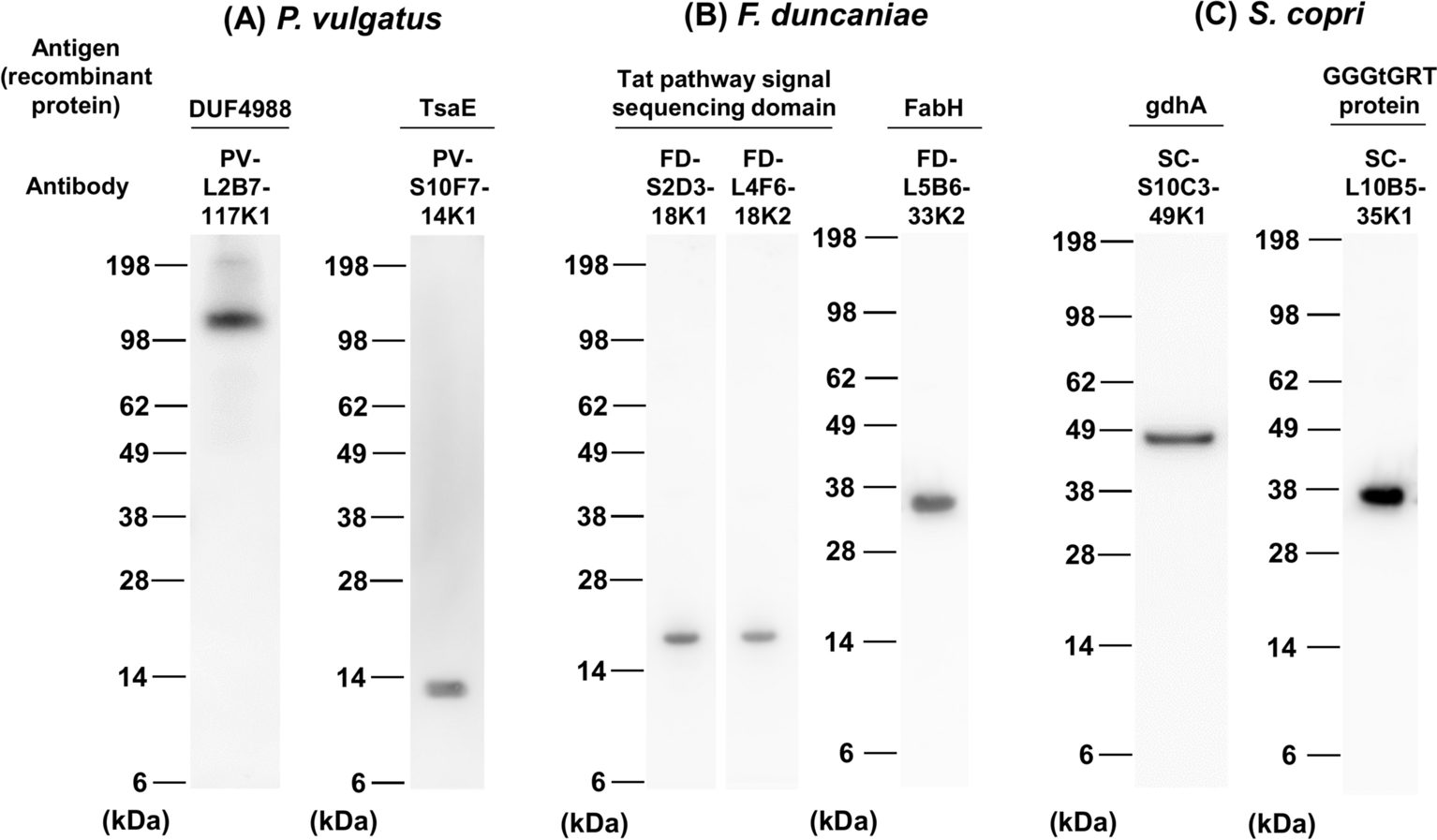

Fig. 5
From: Establishment of enterotype-specific antibodies for various diagnostic systems
Recognition of candidate proteins expressed from Escherichia coli by the monoclonal antibodies (mAbs) established in this study. Candidate target proteins were expressed in E. coli and subjected to western blotting with our established mAbs that were specifically reactive to (A) Phocaeicola vulgatus JCM5826, (B) Faecalibacterium duncaniae JCM31915, and (C) Segatella copri JCM13464. Representative images are shown. Data are representative of two independent experiments. The entire gel and blot are provided in the supplementary materials.
