Fig. 8
From: Micromagnetic simulations with periodic strayfield calculation of soft magnetic composite-materials

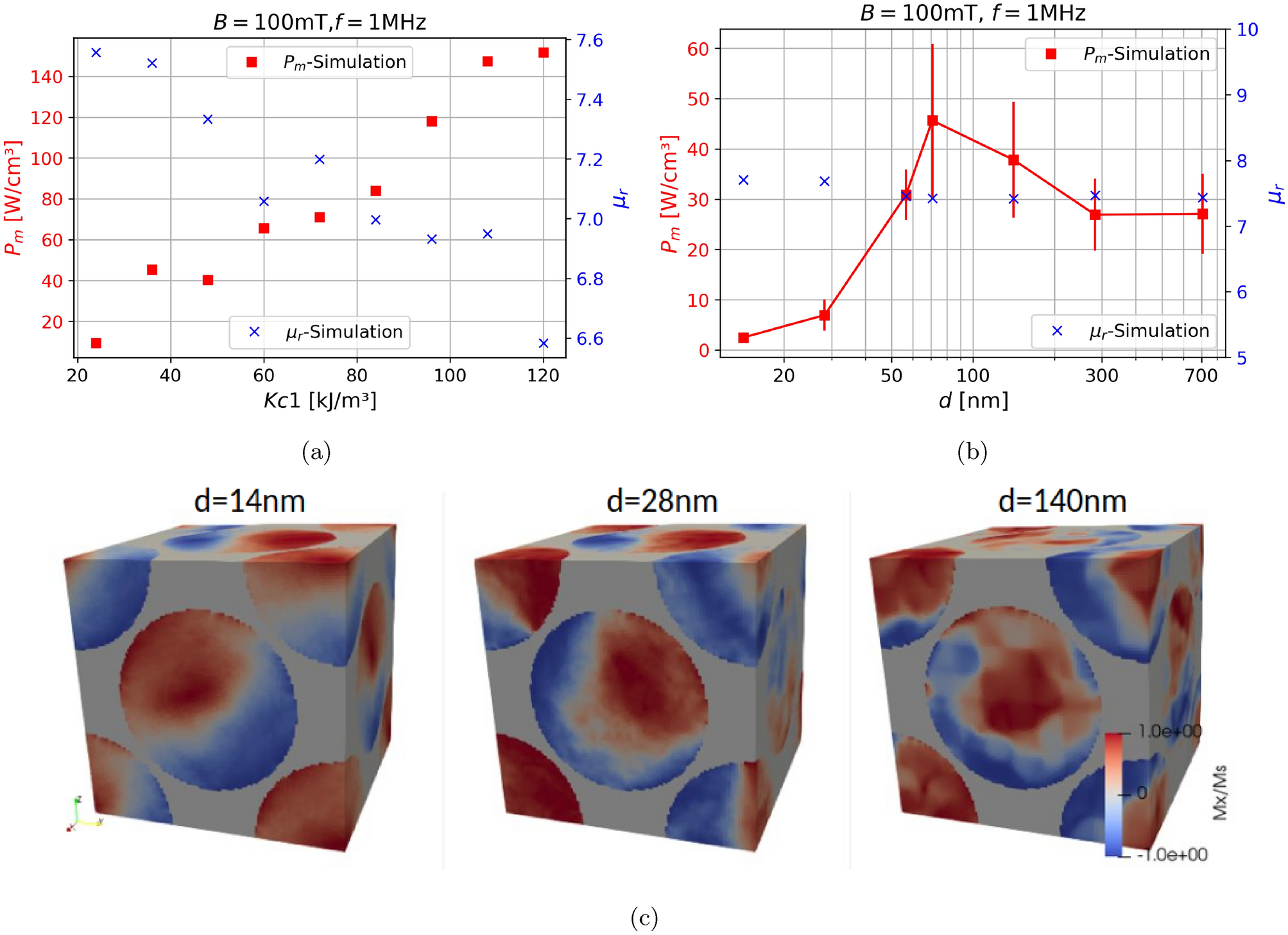

(a) Sweep over the anisotropy constant Kc1 is shown, for the micromagnetic powerloss \(P_m\) and the permeability \(\mu _r\). (b)Simulating the random anisotropy model, by changing the grain-size d for the micromagnetic powerloss \(P_m\) and the relative permeability \(\mu _r\), along with (c) the magnetization images at \(B=100\text {mT}\).
