Fig. 4

From: Small non-coding RNAs have predicted roles in reproductive biology and transposable element regulation in the parasitic worm Strongyloides venezuelensis

Fig. 4

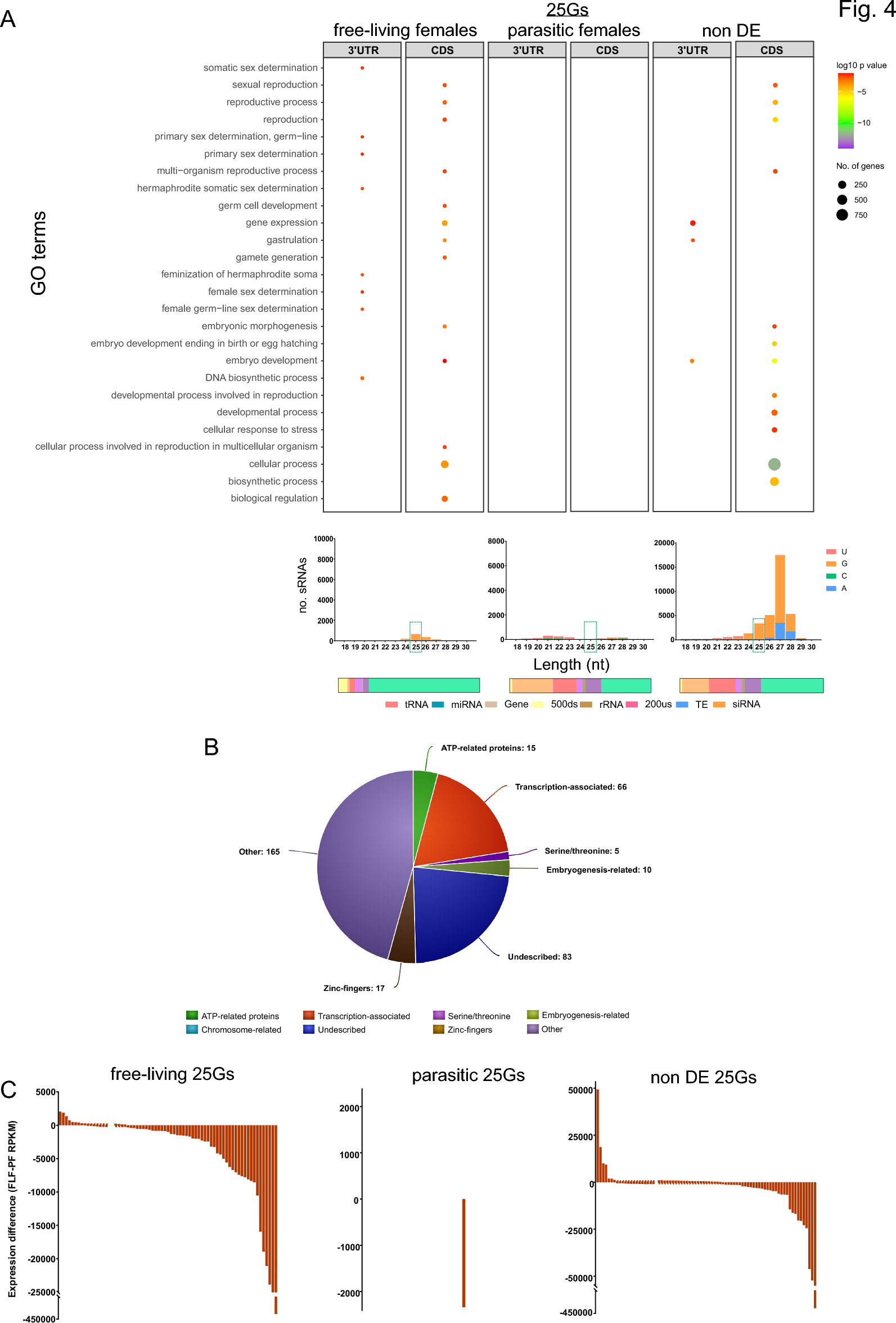

Gene Ontology (GO) enrichment analysis of free-living 25G gene targets. (A) Enriched GO terms associated with the predicted gene targets (the coding sequence (CDS) and 3’UTRs of protein coding genes) of 25G sRNAs upregulated in free-living females, parasitic females and non-differentially expressed sRNAs.. Enriched GO terms were visualised using REVIGO67. Corresponding upregulated sRNAs first base, origin and nucleotide profile shown below. (B) the proteins associated with the free-living upregulated 25Gs. (C) Difference in expression level (RPKM: FLF minus PF) of genes putatively targeted by free-living upregulated, parasitic upregulated and non-DE 25Gs with a logFC of ≤ 1.5. RPKM = Reads per kilobase per million.
