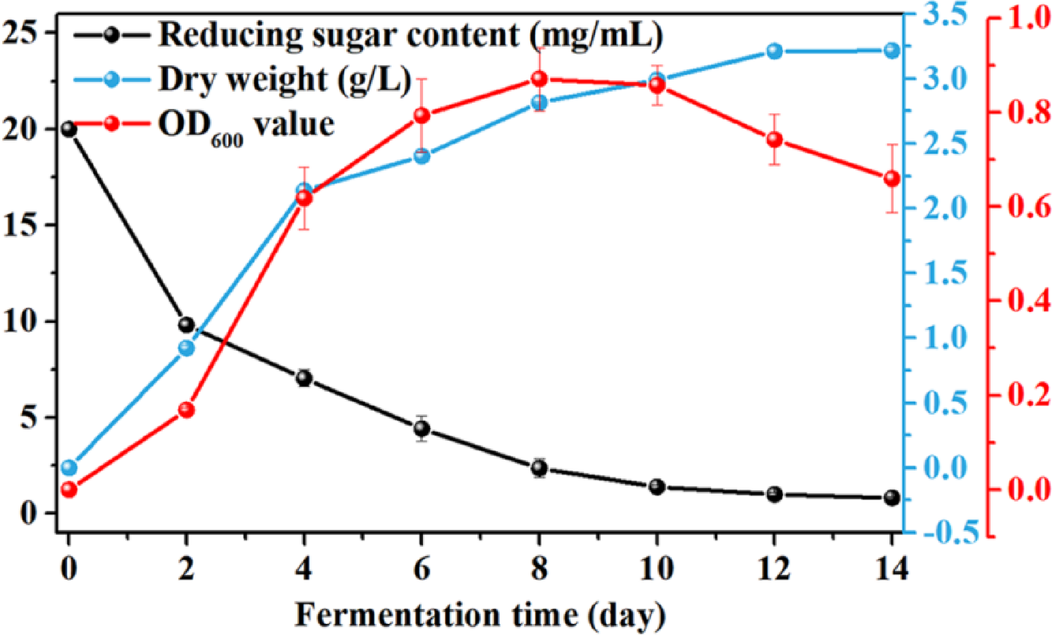

Fig. 3
From: Bio-synthesis of bacterial cellulose from ramie textile waste for high-efficiency Cu(II) adsorption
Variations in the dried weight of bacterial cellulose, bacterial concentration, and reducing sugar during the fermentation process of Novacetimonas hansenii HX1.
